CeramiX® Shell Mill Holder Disc Brushes

CeramiX® Shell Mill Disc Brushes - Dense Pattern

Our shell mill disc brush comes with a built-in keyway for ease of mounting on any standard shell mill holder. Our CeramiX dense pattern disc brush has superior filament density to deliver consistent, aggressive abrasive action. Our CeramiX filament with 3M™ Abrasive Grain is unmatched in performance.

Product Detail

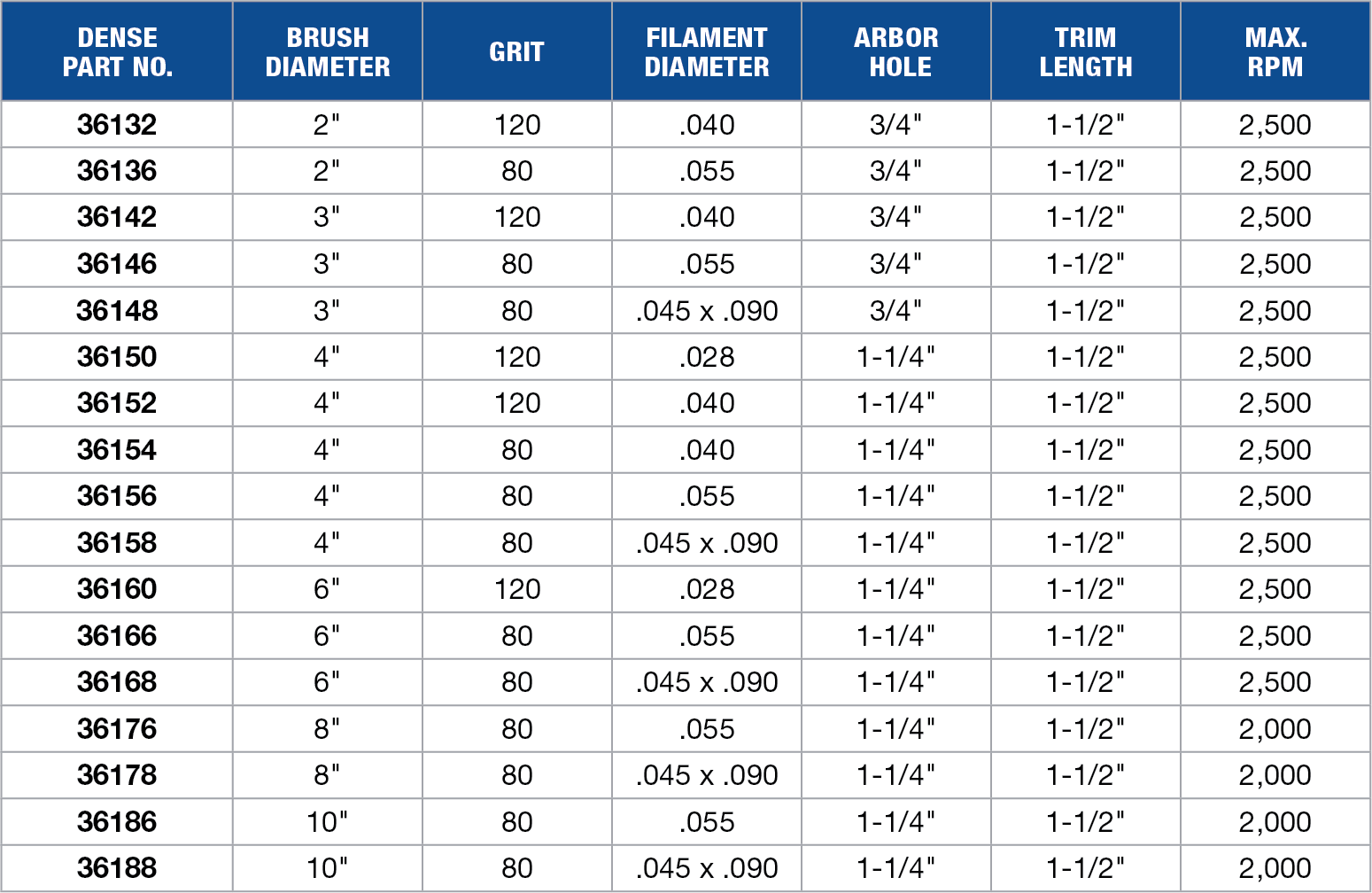

DENSE PART NO. BRUSH DIAMETER GRIT FILAMENT DIAMETER ARBOR HOLE TRIM LENGTH MAX. RPM
36132 2" 120 .040 3/4" 1-1/2" 2,500
36136 2" 80 .055 3/4" 1-1/2" 2,500
36142 3" 120 .040 3/4" 1-1/2" 2,500
36146 3" 80 .055 3/4" 1-1/2" 2,500
36148 3" 80 .045 x .090 3/4" 1-1/2" 2,500
36150 4" 120 .028 1-1/4" 1-1/2" 2,500
36152 4" 120 .040 1-1/4" 1-1/2" 2,500
36154 4" 80 .040 1-1/4" 1-1/2" 2,500
36156 4" 80 .055 1-1/4" 1-1/2" 2,500
36158 4" 80 .045 x .090 1-1/4" 1-1/2" 2,500
36160 6" 120 .028 1-1/4" 1-1/2" 2,500
36166 6" 80 .055 1-1/4" 1-1/2" 2,500
36168 6" 80 .045 x .090 1-1/4" 1-1/2" 2,500
36176 8" 80 .055 1-1/4" 1-1/2" 2,000
36178 8" 80 .045 x .090 1-1/4" 1-1/2" 2,000
36186 10" 80 .055 1-1/4" 1-1/2" 2,000
36188 10" 80 .045 x .090 1-1/4" 1-1/2" 2,000

CeramiX® Shell Mill Disc Brushes - Tufted Pattern

Our tufted pattern shell mill disc brush delivers robust abrasive action and offers more filament flexibility, which may be needed if your part has grooves or openings. Comes standard with built-in keyway for mounting on a standard shell mill holder. Provides filament density yet makes it seamless for coolant to flow through. Featuring our CeramiX filament with 3M™ abrasive grain for superior finishing.

Product Detail

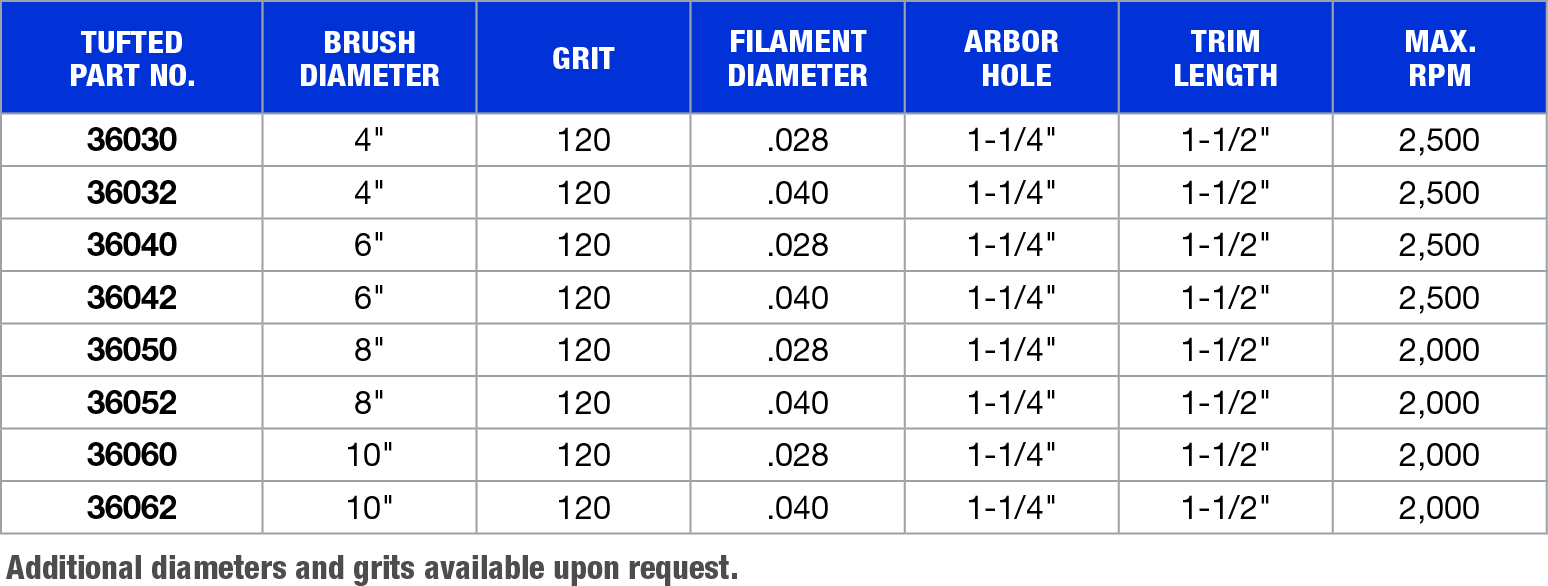

Tufted Part No. Brush Diameter Grit Filament Diameter Arbor Hole Trim Length Max. RPM
36030 4" 120 .028 1-1/4" 1-1/2" 2,500
36032 4" 120 .040 1-1/4" 1-1/2" 2,500
36040 6" 120 .028 1-1/4" 1-1/2" 2,500
36042 6" 120 .040 1-1/4" 1-1/2" 2,500
36050 8" 120 .028 1-1/4" 1-1/2" 2,000
36052 8" 120 .040 1-1/4" 1-1/2" 2,000
36060 10" 120 .028 1-1/4" 1-1/2" 2,000
36062 10" 120 .040 1-1/4" 1-1/2" 2,000

Additional diameters and grits available upon request.

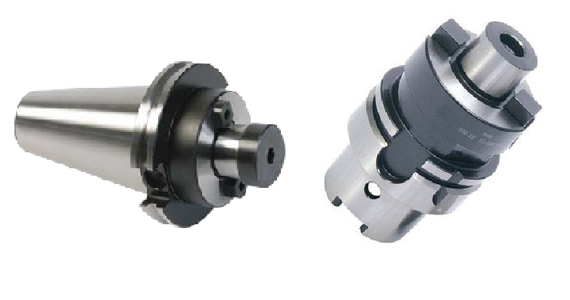

Shell Mill Holders

Shell Mill Holders

Tanis Shell Mill Holder Disc Brushes can be used with standard shell mill holder. (Not offered through Tanis)

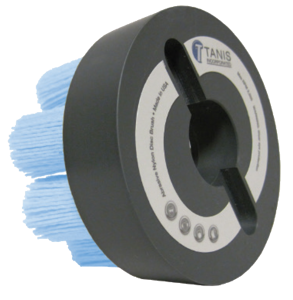

Tufted shell mill holder disc brush

CeramiX® Shell Mill Holder Disc Brushes

CeramiX® Shell Mill Disc Brushes provide a consistent, flat brush for superior dimensional precision. CeramiX® filament provides exceptional abrasive action in deburring applications on flat surfaces, improving metal finish on milled and machined surfaces as well as blending rough edges on machined parts. Shell mill disc brush has built-in keyway to mount directly to a standard shell mill holder for use in CNC machining centers.
