Copper Center Crimped Wire Wheel Brushes – Carbon Steel
Small wheel brush with carbon steel filament will deliver strength in application and are offered in 1” to 4” brush diameters for cleaning, edge blending, deburring, finishing, and roughening. Can be used individually or mounted side-by-side to create a wider brush face, determined based on the size of the part to be finished.

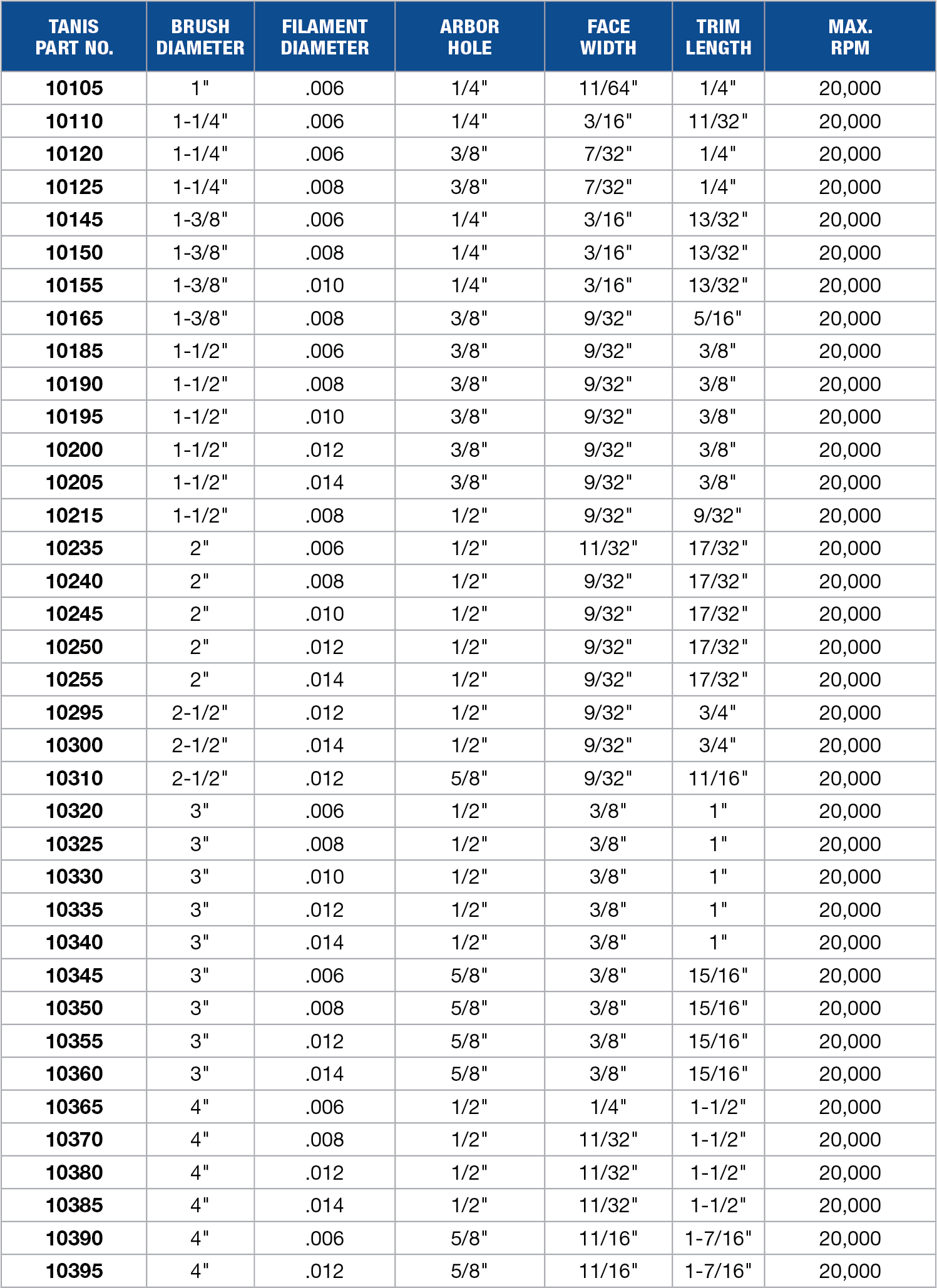

Product Detail| TANIS PART NO. | BRUSH DIAMETER | FILAMENT DIAMETER | ARBOR HOLE | FACE WIDTH | TRIM LENGTH | MAX. RPM |
|---|---|---|---|---|---|---|
| 10105 | 1" | .006 | 1/4" | 11/64" | 1/4" | 20,000 |
| 10110 | 1-1/4" | .006 | 1/4" | 3/16" | 11/32" | 20,000 |
| 10120 | 1-1/4" | .006 | 3/8" | 7/32" | 1/4" | 20,000 |
| 10125 | 1-1/4" | .008 | 3/8" | 7/32" | 1/4" | 20,000 |
| 10145 | 1-3/8" | .006 | 1/4" | 3/16" | 13/32" | 20,000 |
| 10150 | 1-3/8" | .008 | 1/4" | 3/16" | 13/32" | 20,000 |
| 10155 | 1-3/8" | .010 | 1/4" | 3/16" | 13/32" | 20,000 |
| 10165 | 1-3/8" | .008 | 3/8" | 9/32" | 5/16" | 20,000 |
| 10185 | 1-1/2" | .006 | 3/8" | 9/32" | 3/8" | 20,000 |
| 10190 | 1-1/2" | .008 | 3/8" | 9/32" | 3/8" | 20,000 |
| 10195 | 1-1/2" | .010 | 3/8" | 9/32" | 3/8" | 20,000 |
| 10200 | 1-1/2" | .012 | 3/8" | 9/32" | 3/8" | 20,000 |
| 10205 | 1-1/2" | .014 | 3/8" | 9/32" | 3/8" | 20,000 |
| 10215 | 1-1/2" | .008 | 1/2" | 9/32" | 9/32" | 20,000 |
| 10235 | 2" | .006 | 1/2" | 11/32" | 17/32" | 20,000 |
| 10240 | 2" | .008 | 1/2" | 9/32" | 17/32" | 20,000 |
| 10245 | 2" | .010 | 1/2" | 9/32" | 17/32" | 20,000 |
| 10250 | 2" | .012 | 1/2" | 9/32" | 17/32" | 20,000 |
| 10255 | 2" | .014 | 1/2" | 9/32" | 17/32" | 20,000 |
| 10295 | 2-1/2" | .012 | 1/2" | 9/32" | 3/4" | 20,000 |
| 10300 | 2-1/2" | .014 | 1/2" | 9/32" | 3/4" | 20,000 |
| 10310 | 2-1/2" | .012 | 5/8" | 9/32" | 11/16" | 20,000 |
| 10320 | 3" | .006 | 1/2" | 3/8" | 1" | 20,000 |
| 10325 | 3" | .008 | 1/2" | 3/8" | 1" | 20,000 |
| 10330 | 3" | .010 | 1/2" | 3/8" | 1" | 20,000 |
| 10335 | 3" | .012 | 1/2" | 3/8" | 1" | 20,000 |
| 10340 | 3" | .014 | 1/2" | 3/8" | 1" | 20,000 |
| 10345 | 3" | .006 | 5/8" | 3/8" | 15/16" | 20,000 |
| 10350 | 3" | .008 | 5/8" | 3/8" | 15/16" | 20,000 |
| 10355 | 3" | .012 | 5/8" | 3/8" | 15/16" | 20,000 |
| 10360 | 3" | .014 | 5/8" | 3/8" | 15/16" | 20,000 |
| 10365 | 4" | .006 | 1/2" | 1/4" | 1-1/2" | 20,000 |
| 10370 | 4" | .008 | 1/2" | 11/32" | 1-1/2" | 20,000 |
| 10380 | 4" | .012 | 1/2" | 11/32" | 1-1/2" | 20,000 |
| 10385 | 4" | .014 | 1/2" | 11/32" | 1-1/2" | 20,000 |
| 10390 | 4" | .006 | 5/8" | 11/16" | 1-7/16" | 20,000 |
| 10395 | 4" | .012 | 5/8" | 11/16" | 1-7/16" | 20,000 |
