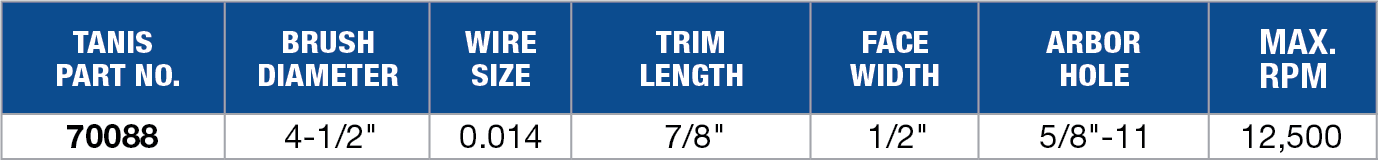

Crimped wire is best used for light to medium deburring, descaling, rust removal and surface cleaning and are designed for mounting on angle grinders. Wheel brushes are well suited for finishing shaped, curved or grooved surfaces.
| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | FACE WIDTH | ARBOR HOLE | MAX. RPM |
|---|---|---|---|---|---|---|
| 70088 | 4-1/2" | 0.014 | 7/8" | 1/2" | 5/8"-11 | 12,500 |

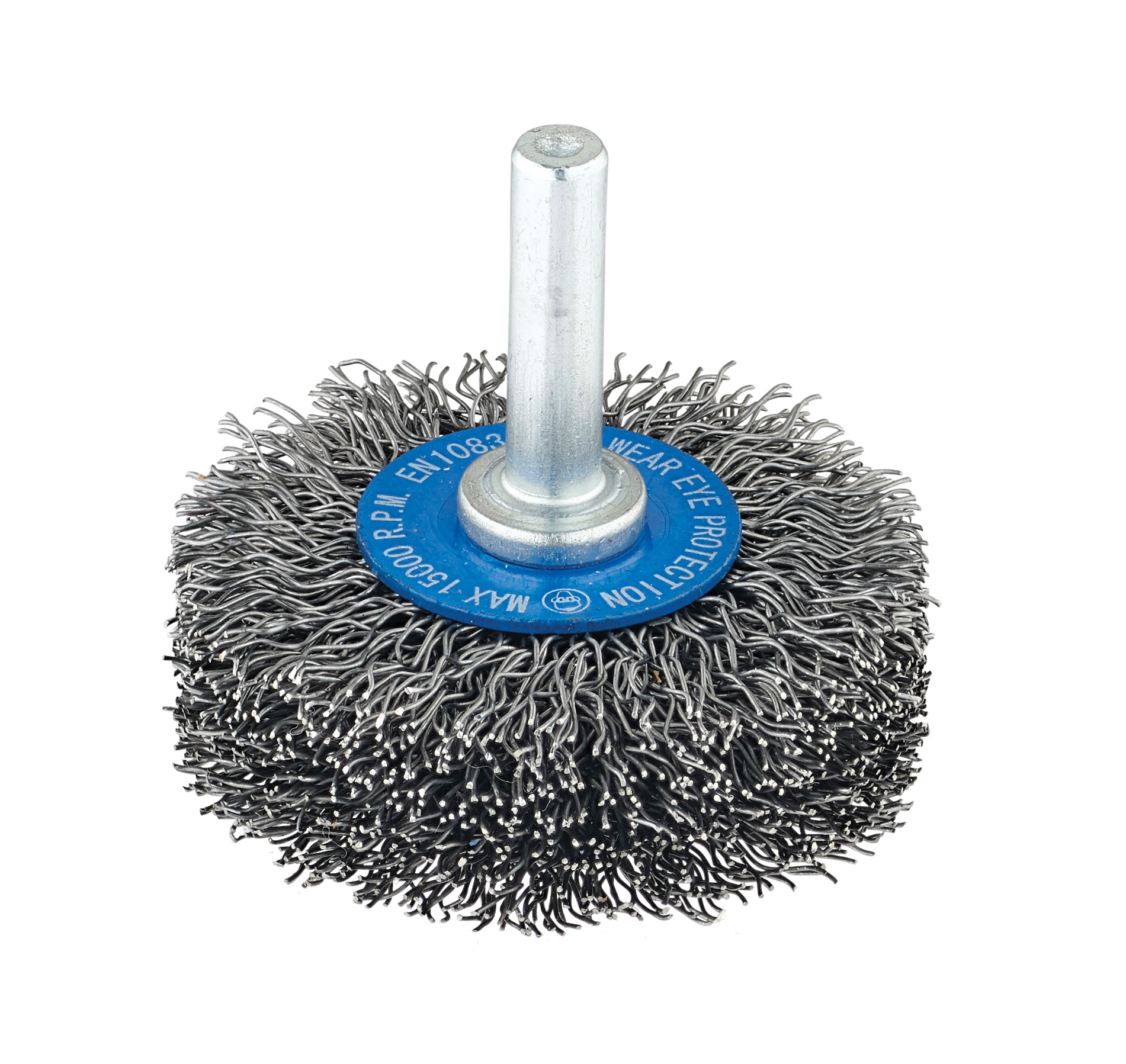

Stem mount wheels are made with a high wire density for descaling, paint and light debris from surfaces. Made from strong carbon steel for exceptional performance.

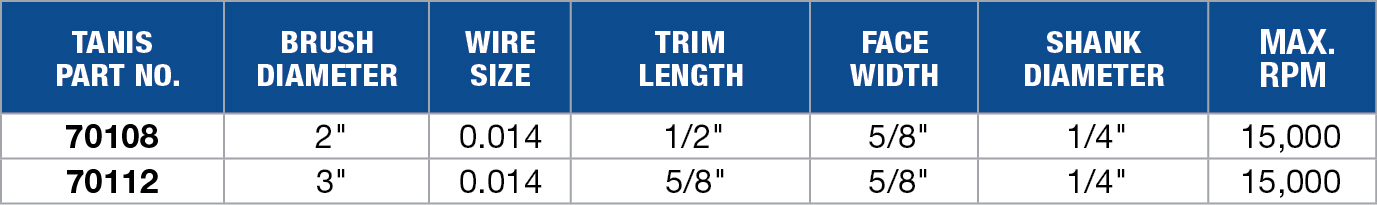

| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | FACE WIDTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|---|
| 70108 | 2" | 0.014 | 1/2" | 5/8" | 1/4" | 15,000 |
| 70112 | 3" | 0.014 | 5/8" | 5/8" | 1/4" | 15,000 |

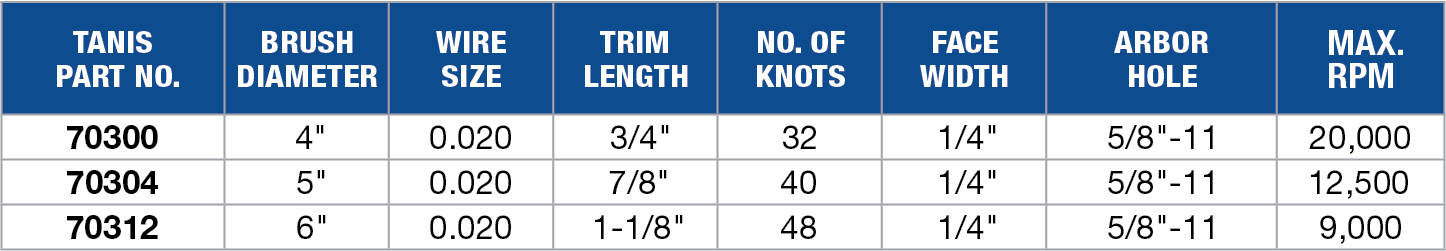

Designed for the most aggressive performance on heavy-duty applications such as weld preparation and the removal of large burrs.
| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | FACE WIDTH | ARBOR HOLE | MAX. RPM |
|---|---|---|---|---|---|---|---|
| 70300 | 4" | 0.020 | 3/4" | 32 | 1/4" | 5/8"-11 | 20,000 |
| 70304 | 5" | 0.020 | 7/8" | 40 | 1/4" | 5/8"-11 | 12,500 |
| 70312 | 6" | 0.020 | 1-1/8" | 48 | 1/4" | 5/8"-11 | 9,000 |
Designed for the most aggressive performance on heavy-duty applications such as weld preparation and the removal of large burrs. Stainless steel is corrosion resistant.

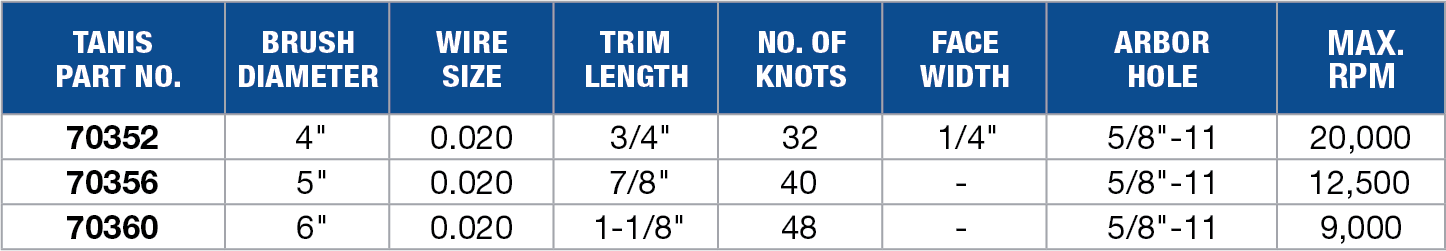

| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | FACE WIDTH | ARBOR HOLE | MAX. RPM |
|---|---|---|---|---|---|---|---|
| 70352 | 4" | 0.020 | 3/4" | 32 | 1/4" | 5/8"-11 | 20,000 |
| 70356 | 5" | 0.020 | 7/8" | 40 | - | 5/8"-11 | 12,500 |
| 70360 | 6" | 0.020 | 1-1/8" | 48 | - | 5/8"-11 | 9,000 |

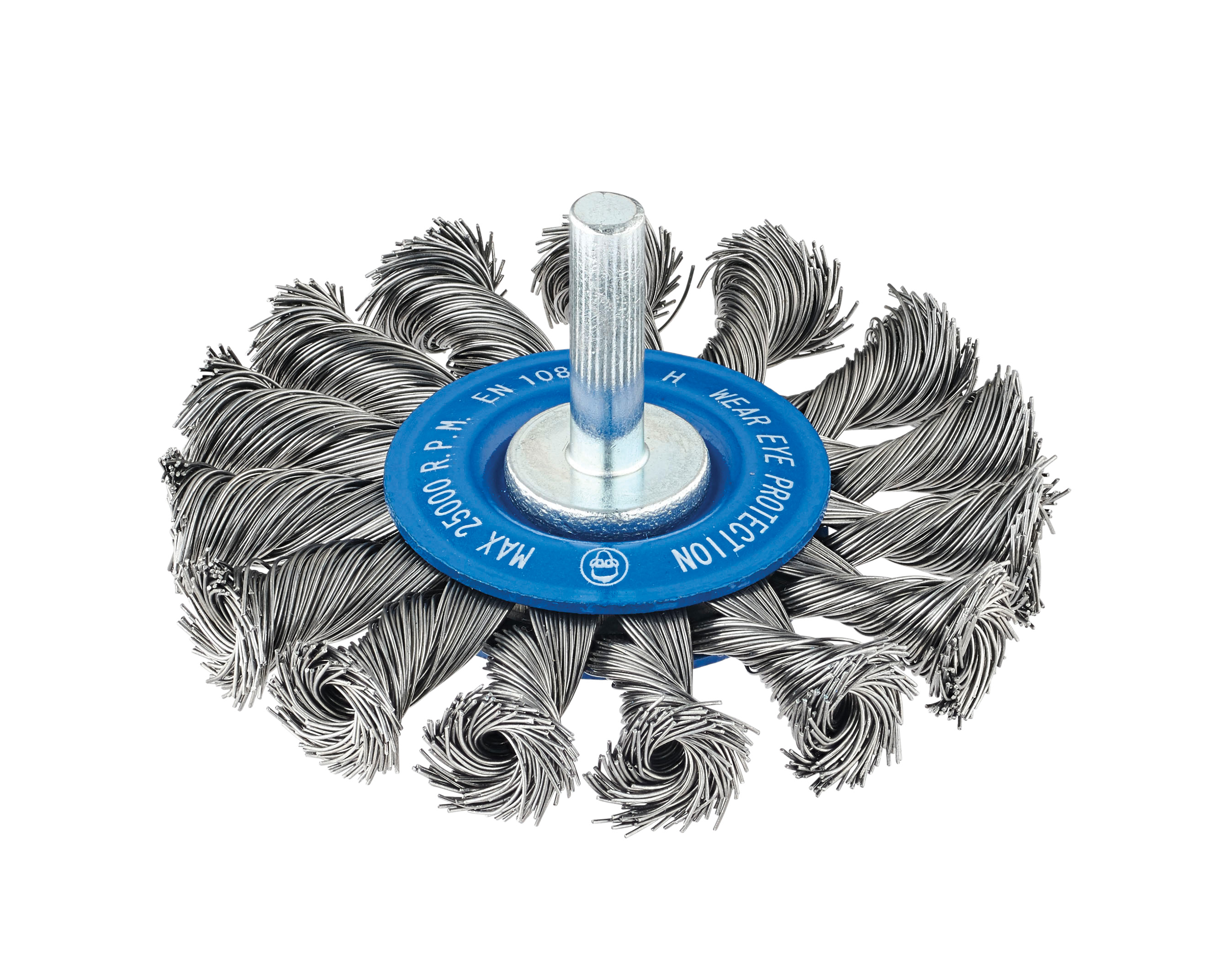

Designed to mount on machinery and hand-held tools for aggressive cleaning and removal of slag, scale and rust.

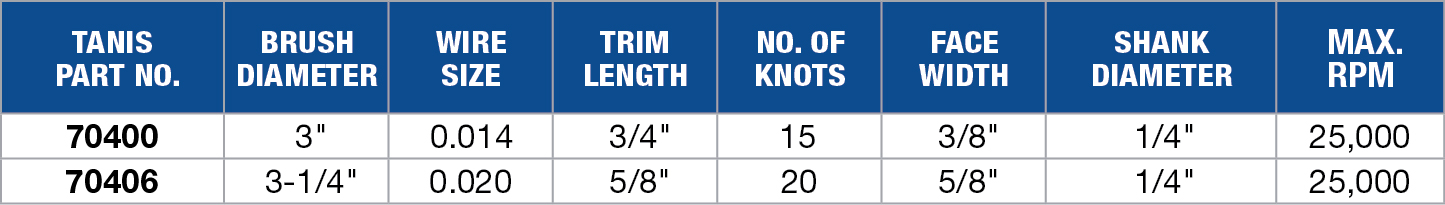

| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | FACE WIDTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|---|---|
| 70400 | 3" | 0.014 | 3/4" | 15 | 3/8" | 1/4" | 25,000 |
| 70406 | 3-1/4" | 0.020 | 5/8" | 20 | 5/8" | 1/4" | 25,000 |

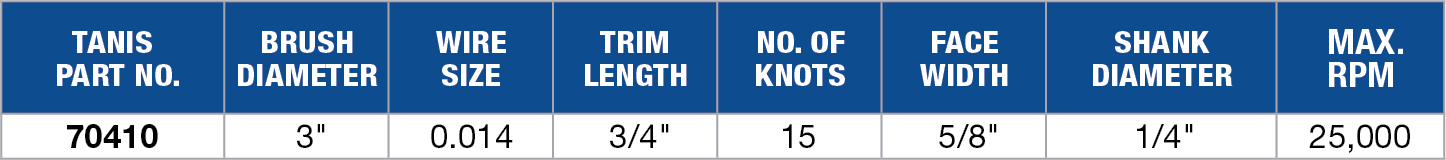

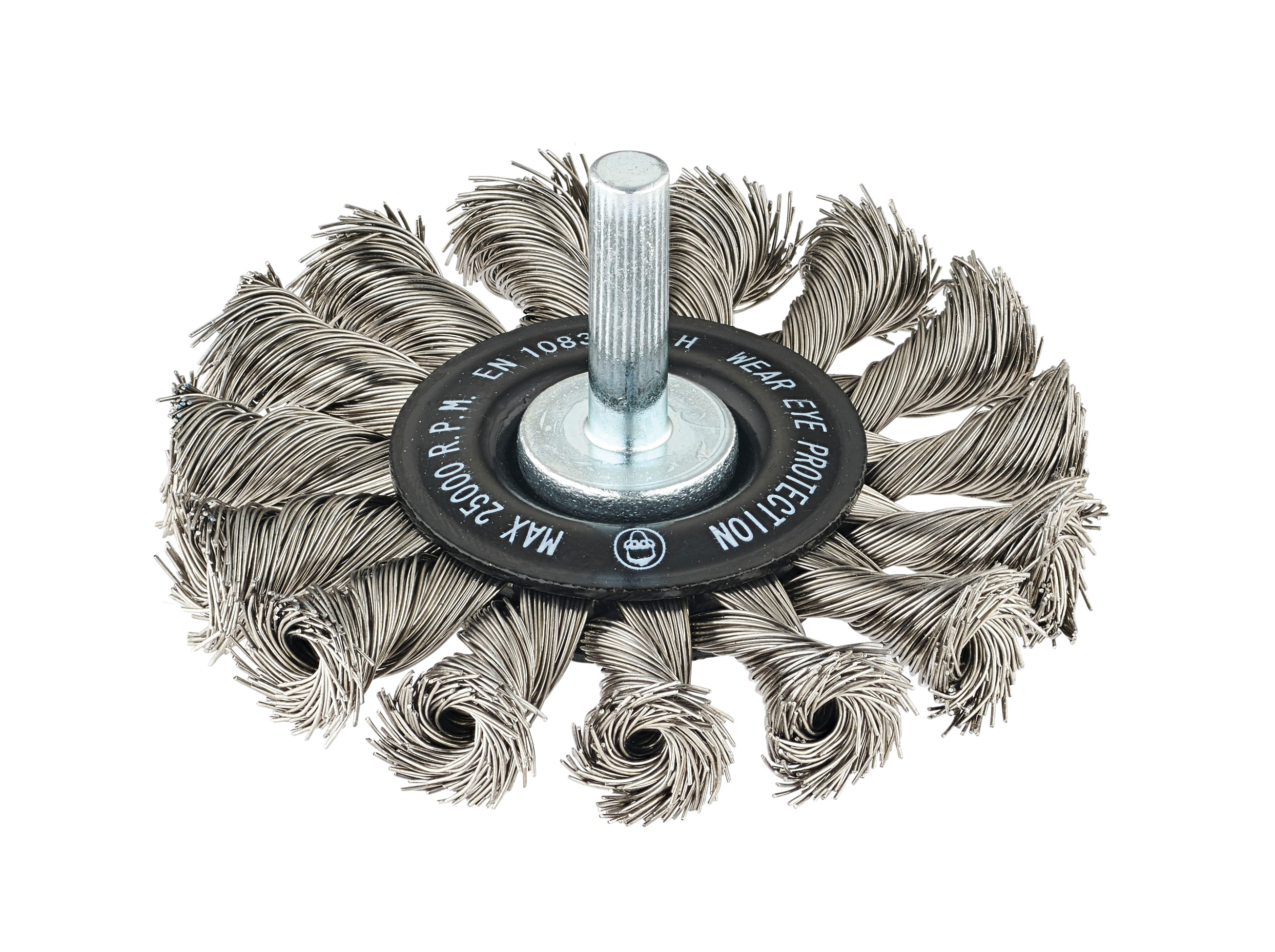

Designed to mount on machinery and hand-held tools for aggressive cleaning and removal of slag, scale and rust. Offered in stainless steel to excel in wet or corrosive environments.
| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | FACE WIDTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|---|---|
| 70410 | 3" | 0.014 | 3/4" | 15 | 5/8" | 1/4" | 25,000 |

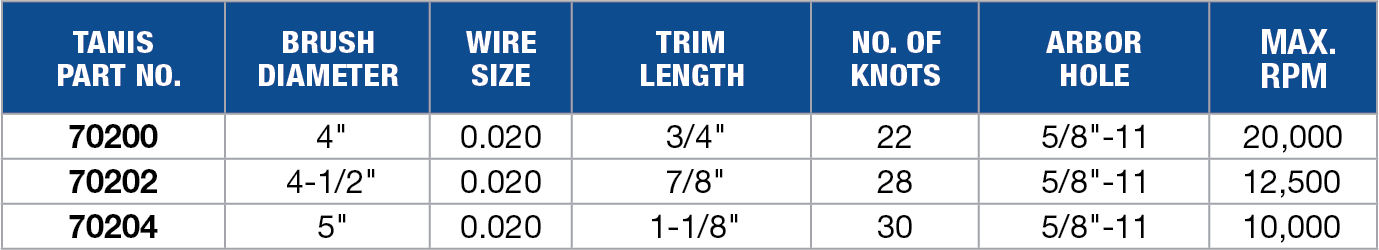

Designed for medium to heavy-duty applications such as weld preparation, grinding, paint stripping and the removal of large burrs.
| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | ARBOR HOLE | MAX. RPM |
|---|---|---|---|---|---|---|
| 70200 | 4" | 0.020 | 3/4" | 22 | 5/8"-11 | 20,000 |
| 70202 | 4-1/2" | 0.020 | 7/8" | 28 | 5/8"-11 | 12,500 |
| 70204 | 5" | 0.020 | 1-1/8" | 30 | 5/8"-11 | 10,000 |
Designed for medium to heavy-duty applications such as weld preparation, grinding, paint stripping and the removal of large burrs. Offered in stainless steel to excel in corrosive environments.

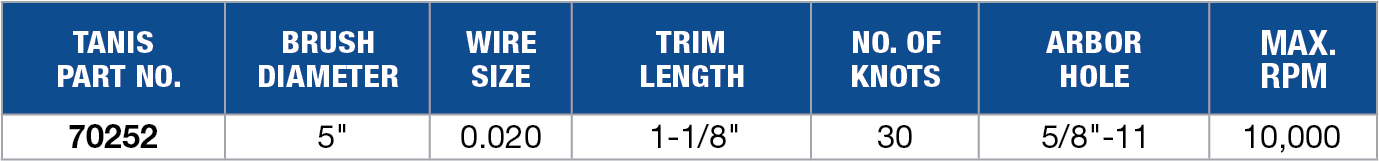

| TANIS PART NO. | BRUSH DIAMETER | WIRE SIZE | TRIM LENGTH | NO. OF KNOTS | ARBOR HOLE | MAX. RPM |
|---|---|---|---|---|---|---|
| 70252 | 5" | 0.020 | 1-1/8" | 30 | 5/8"-11 | 10,000 |

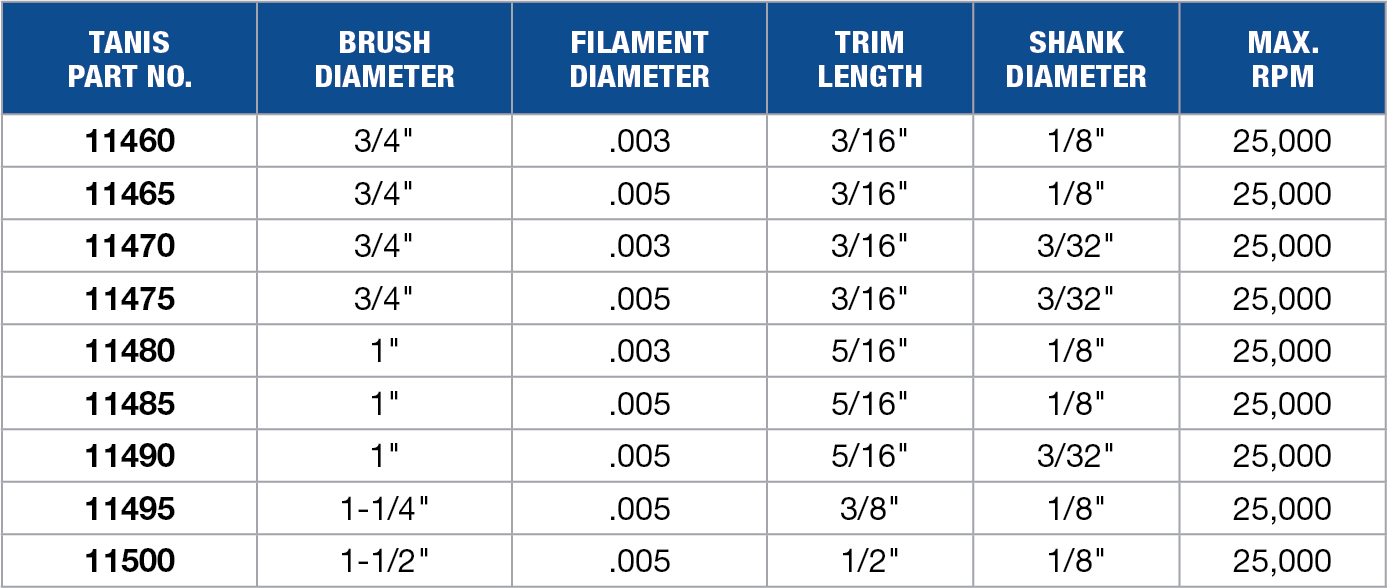

Mini wheel brushes are mounted on a steel stem for use with portable and flexible tools and are best suited for light cleaning, deburring and blending of surface junctures.
| TANIS PART NO. | BRUSH DIAMETER | FILAMENT DIAMETER | TRIM LENGTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|
| 11460 | 3/4" | .003 | 3/16" | 1/8" | 25,000 |
| 11465 | 3/4" | .005 | 3/16" | 1/8" | 25,000 |
| 11470 | 3/4" | .003 | 3/16" | 3/32" | 25,000 |
| 11475 | 3/4" | .005 | 3/16" | 3/32" | 25,000 |
| 11480 | 1" | .003 | 5/16" | 1/8" | 25,000 |
| 11485 | 1" | .005 | 5/16" | 1/8" | 25,000 |
| 11490 | 1" | .005 | 5/16" | 3/32" | 25,000 |
| 11495 | 1-1/4" | .005 | 3/8" | 1/8" | 25,000 |
| 11500 | 1-1/2" | .005 | 1/2" | 1/8" | 25,000 |

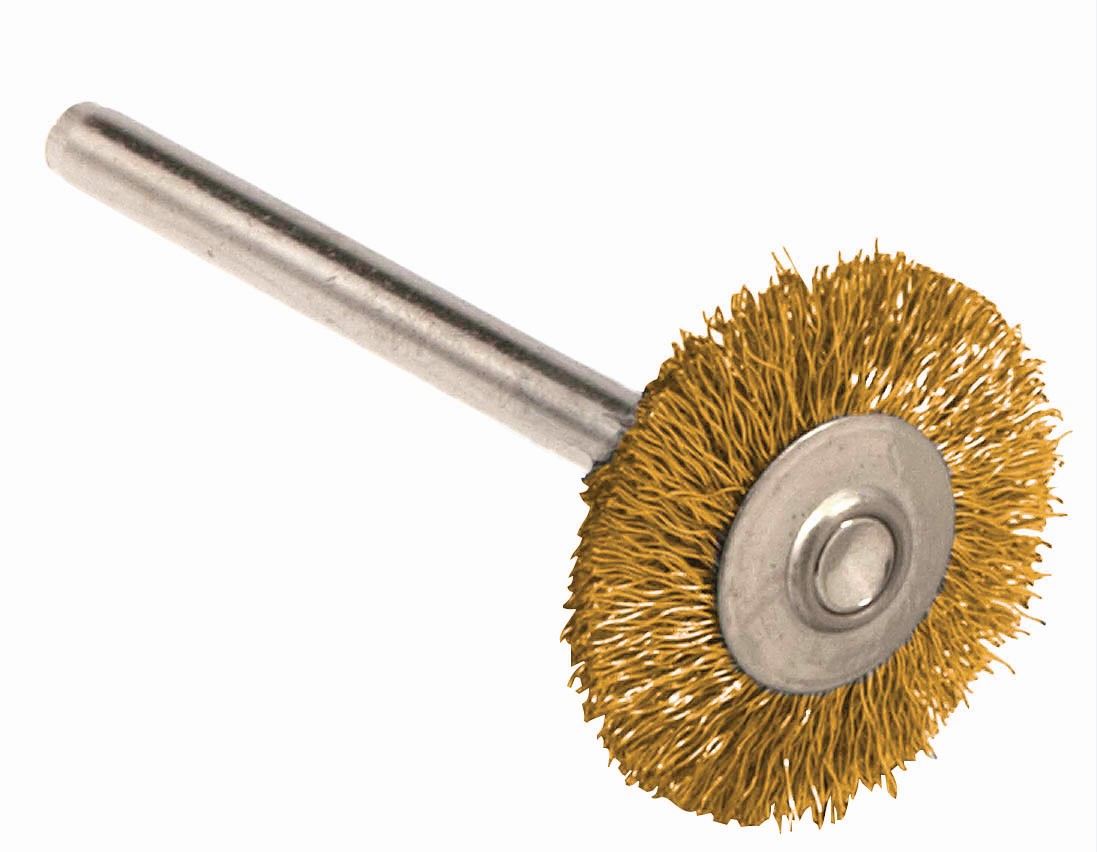

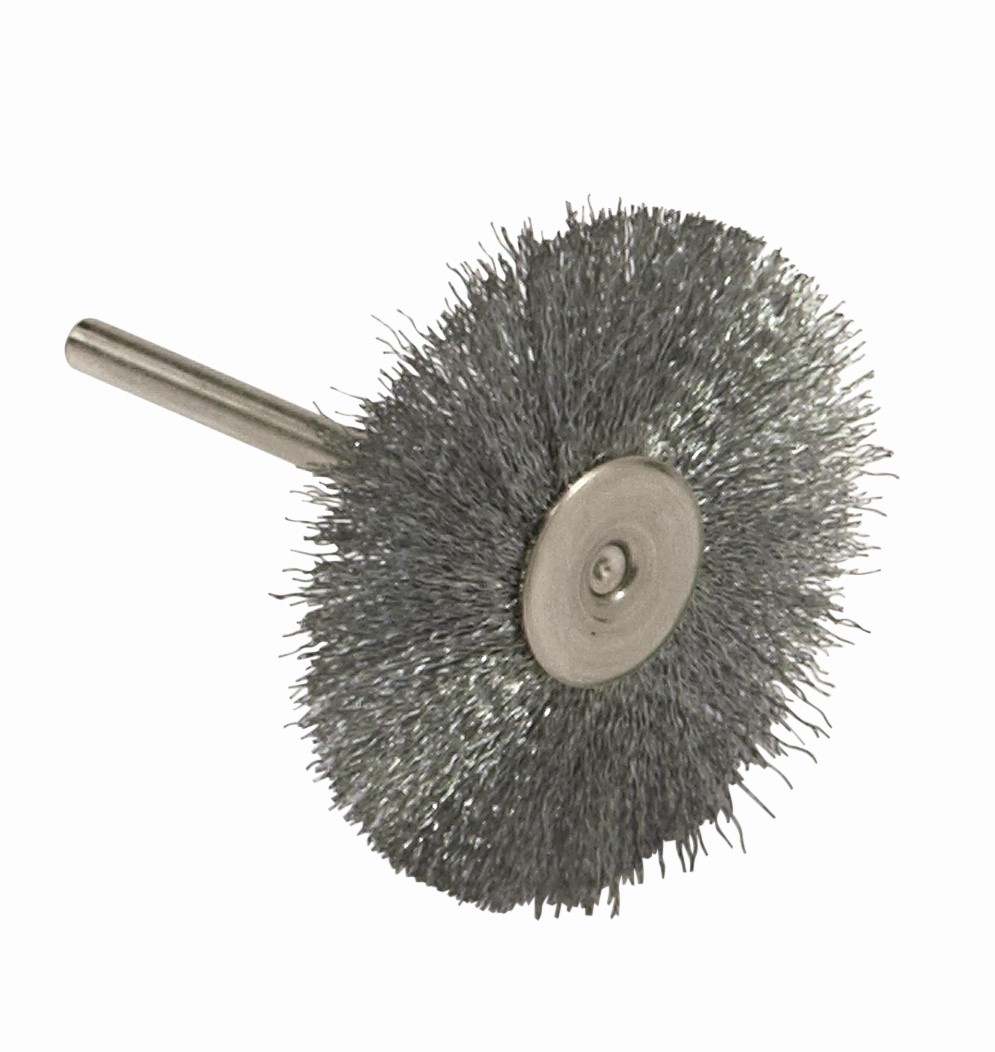

Mini wheel brushes are mounted on a steel stem for use with portable and flexible tools and are best suited for light cleaning, deburring and blending of surface junctures.

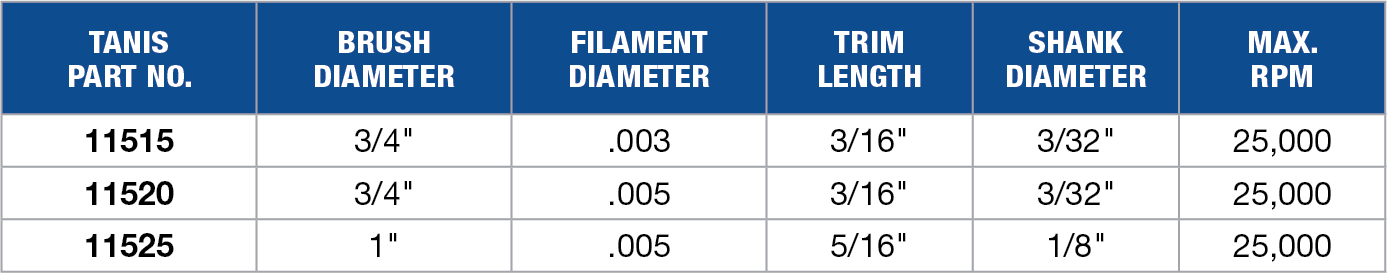

| TANIS PART NO. | BRUSH DIAMETER | FILAMENT DIAMETER | TRIM LENGTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|
| 11515 | 3/4" | .003 | 3/16" | 3/32" | 25,000 |
| 11520 | 3/4" | .005 | 3/16" | 3/32" | 25,000 |
| 11525 | 1" | .005 | 5/16" | 1/8" | 25,000 |

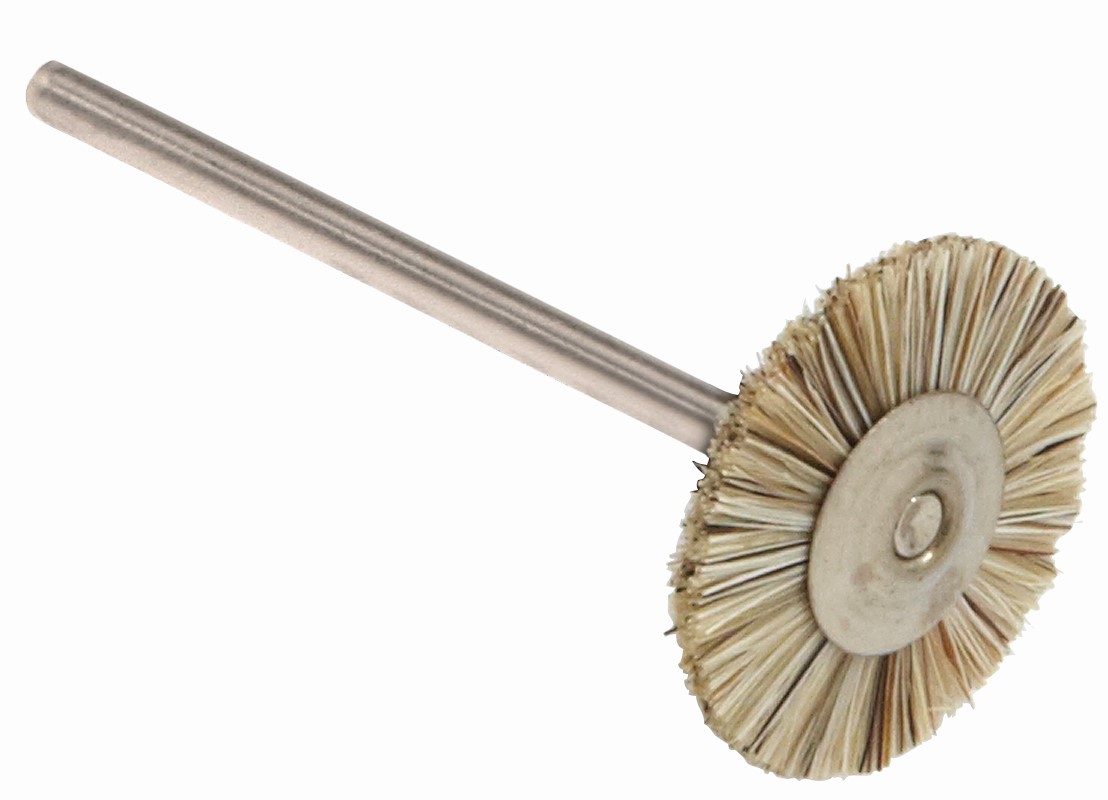

Mini wheel brushes are mounted on a steel stem for use with portable and flexible tools and are best suited for light cleaning, deburring and blending of surface junctures.

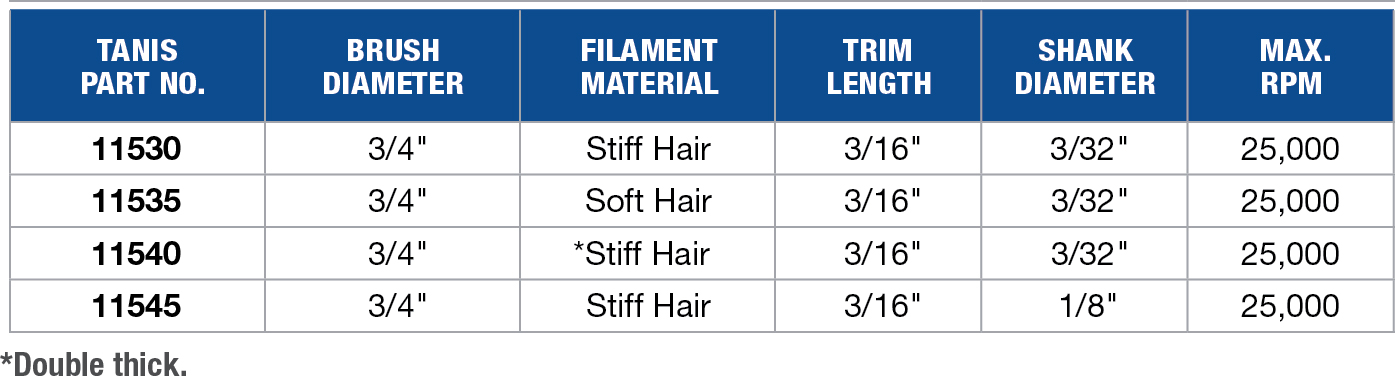

| TANIS PART NO. | BRUSH DIAMETER | FILAMENT MATERIAL | TRIM LENGTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|
| 11530 | 3/4" | Stiff Hair | 3/16" | 3/32" | 25,000 |
| 11535 | 3/4" | Soft Hair | 3/16" | 3/32" | 25,000 |
| 11540 | 3/4" | *Stiff Hair | 3/16" | 3/32" | 25,000 |
| 11545 | 3/4" | Stiff Hair | 3/16" | 1/8" | 25,000 |
*Double thick.

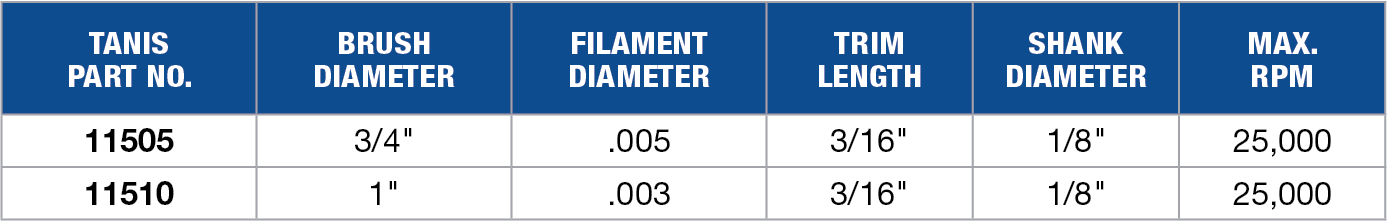

Mini wheel brushes are mounted on a steel stem for use with portable and flexible tools and are best suited for light cleaning, deburring and blending of surface junctures.
| TANIS PART NO. | BRUSH DIAMETER | FILAMENT DIAMETER | TRIM LENGTH | SHANK DIAMETER | MAX. RPM |
|---|---|---|---|---|---|
| 11505 | 3/4" | .005 | 3/16" | 1/8" | 25,000 |
| 11510 | 1" | .003 | 3/16" | 1/8" | 25,000 |
