Wire End Brushes

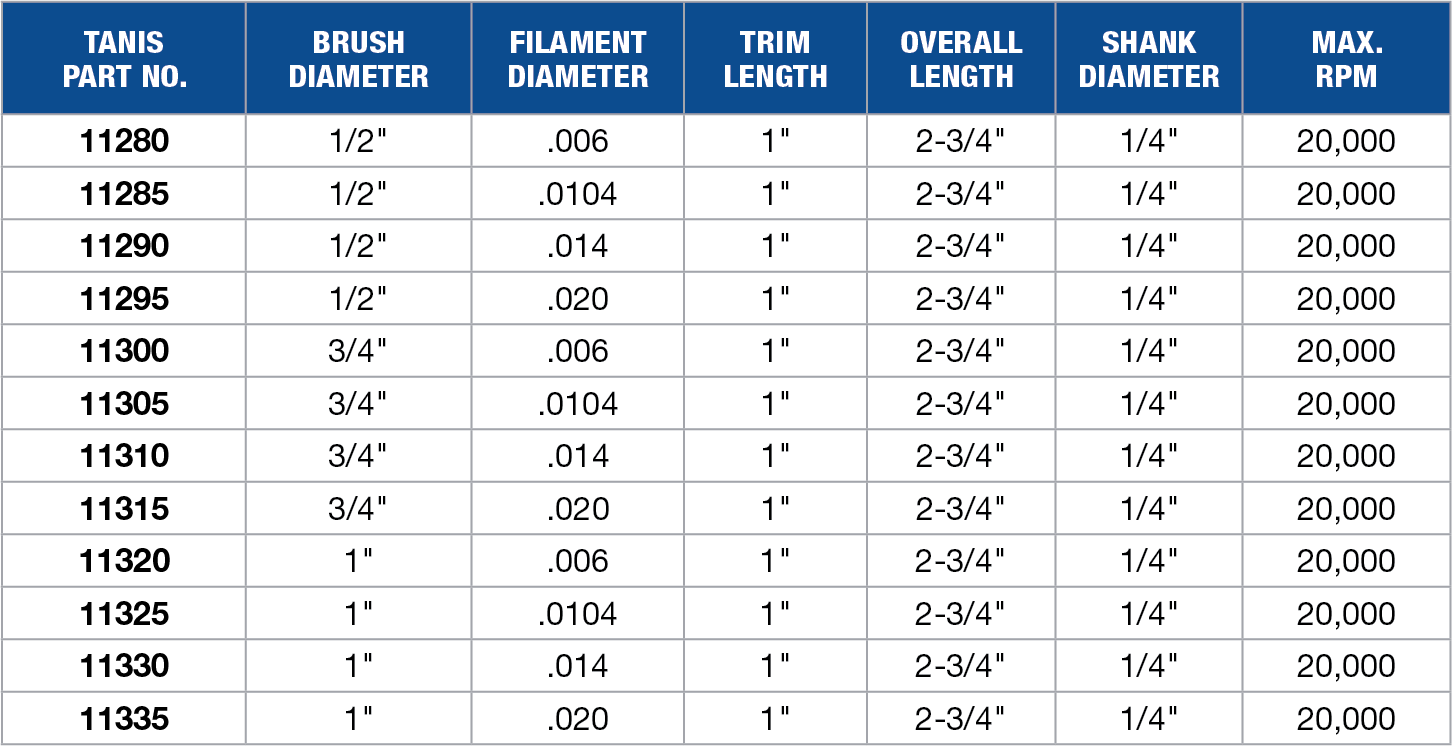

Crimped Wire End Brushes – Carbon Steel

Wire end brushes are made with a 1/4” shank for use on angle grinders. Our crimped style wire end brushes are effective for light to medium cleaning and accurate brushing action in tight areas. Carbon steel is stronger than stainless steel but is susceptible to corrosion.

TANIS PART NO. BRUSH DIAMETER FILAMENT DIAMETER TRIM LENGTH OVERALL LENGTH SHANK DIAMETER MAX. RPM
11280 1/2" .006 1" 2-3/4" 1/4" 20,000
11285 1/2" .0104 1" 2-3/4" 1/4" 20,000
11290 1/2" .014 1" 2-3/4" 1/4" 20,000
11295 1/2" .020 1" 2-3/4" 1/4" 20,000
11300 3/4" .006 1" 2-3/4" 1/4" 20,000
11305 3/4" .0104 1" 2-3/4" 1/4" 20,000
11310 3/4" .014 1" 2-3/4" 1/4" 20,000
11315 3/4" .020 1" 2-3/4" 1/4" 20,000
11320 1" .006 1" 2-3/4" 1/4" 20,000
11325 1" .0104 1" 2-3/4" 1/4" 20,000
11330 1" .014 1" 2-3/4" 1/4" 20,000
11335 1" .020 1" 2-3/4" 1/4" 20,000

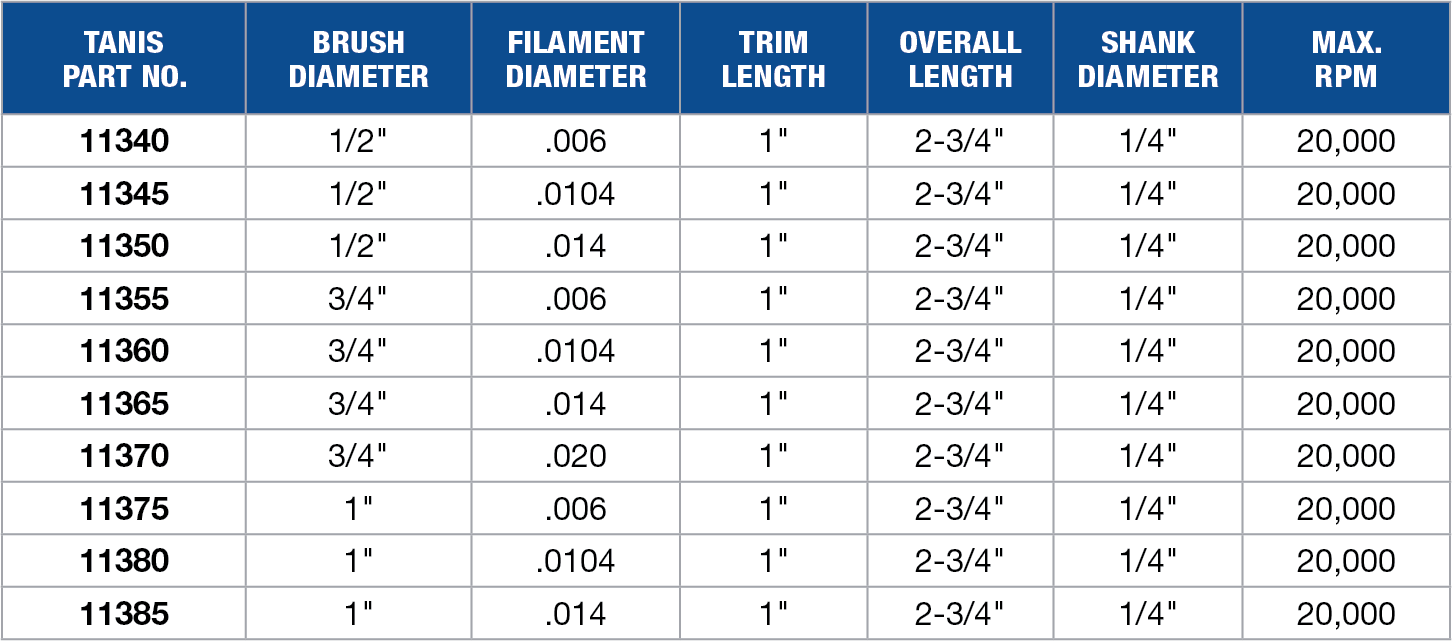

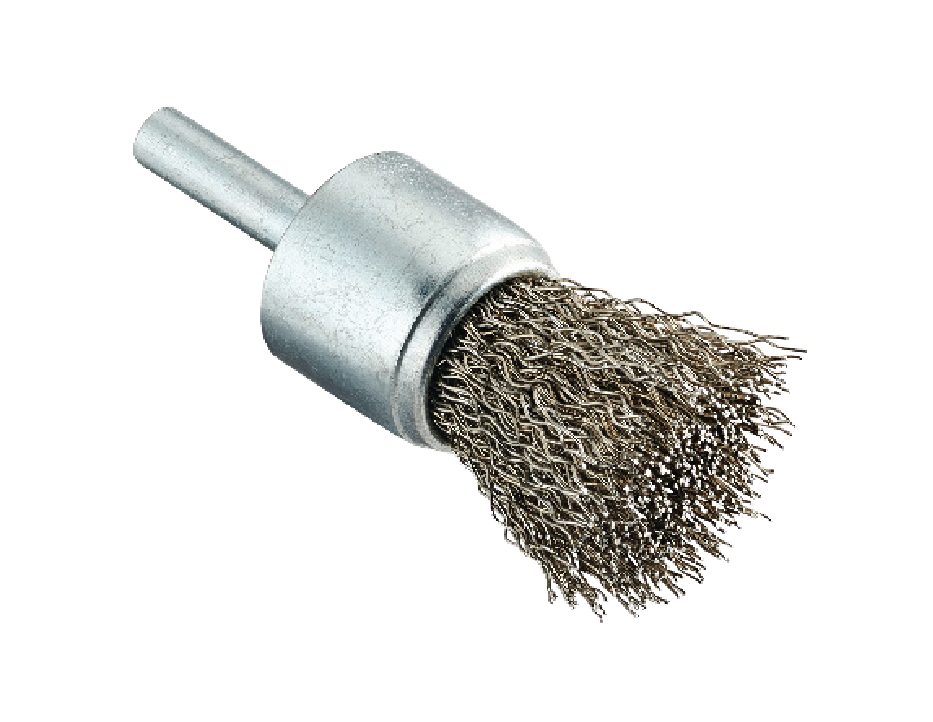

Crimped Wire End Brushes – Stainless Steel

Wire end brushes are made with a 1/4” shank for use on angle grinders. Our crimped style wire end brushes are effective for light to medium cleaning and accurate brushing action in tight areas. Stainless steel is ideal for wet or corrosive environments.

TANIS PART NO. BRUSH DIAMETER FILAMENT DIAMETER TRIM LENGTH OVERALL LENGTH SHANK DIAMETER MAX. RPM
11340 1/2" .006 1" 2-3/4" 1/4" 20,000
11345 1/2" .0104 1" 2-3/4" 1/4" 20,000
11350 1/2" .014 1" 2-3/4" 1/4" 20,000
11355 3/4" .006 1" 2-3/4" 1/4" 20,000
11360 3/4" .0104 1" 2-3/4" 1/4" 20,000
11365 3/4" .014 1" 2-3/4" 1/4" 20,000
11370 3/4" .020 1" 2-3/4" 1/4" 20,000
11375 1" .006 1" 2-3/4" 1/4" 20,000
11380 1" .0104 1" 2-3/4" 1/4" 20,000
11385 1" .014 1" 2-3/4" 1/4" 20,000

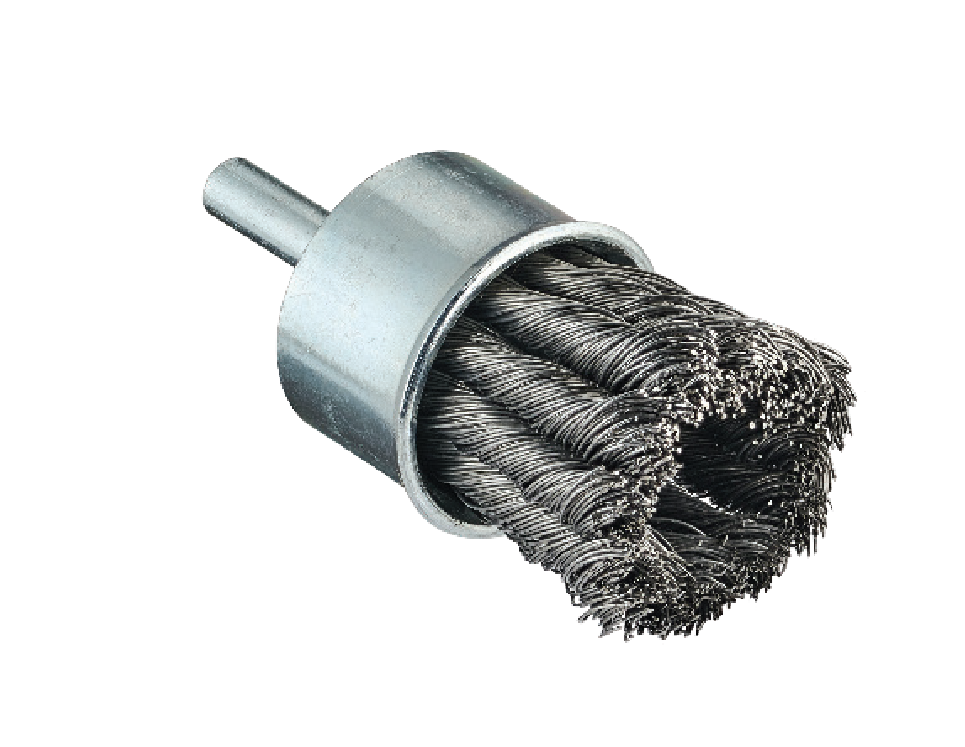

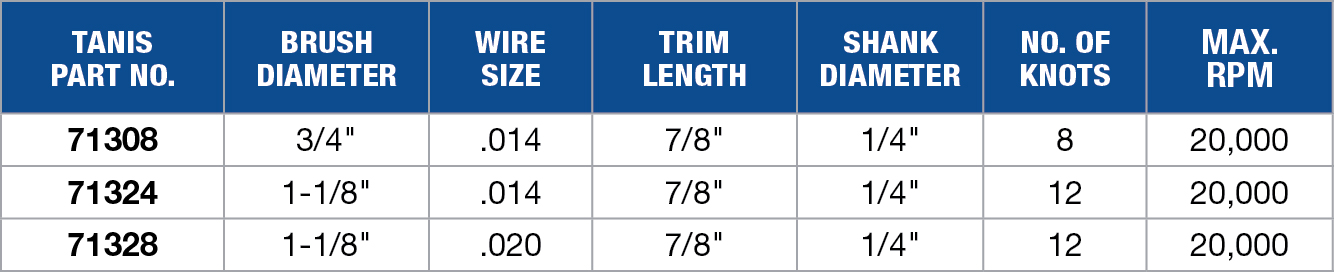

Twisted Knot End Brushes – Carbon Steel

For aggressive deburring and cleaning performance, choose our twisted knot end brushes.  With a smaller brush diameter, the end brushes can fit tighter areas and recesses. Carbon steel is best suited for dry environments. Use end brushes on straight and angle grinders.

TANIS PART NO. BRUSH DIAMETER WIRE SIZE TRIM LENGTH SHANK DIAMETER NO. OF KNOTS MAX. RPM
71308 3/4" .014 7/8" 1/4" 8 20,000
71324 1-1/8" .014 7/8" 1/4" 12 20,000
71328 1-1/8" .020 7/8" 1/4" 12 20,000

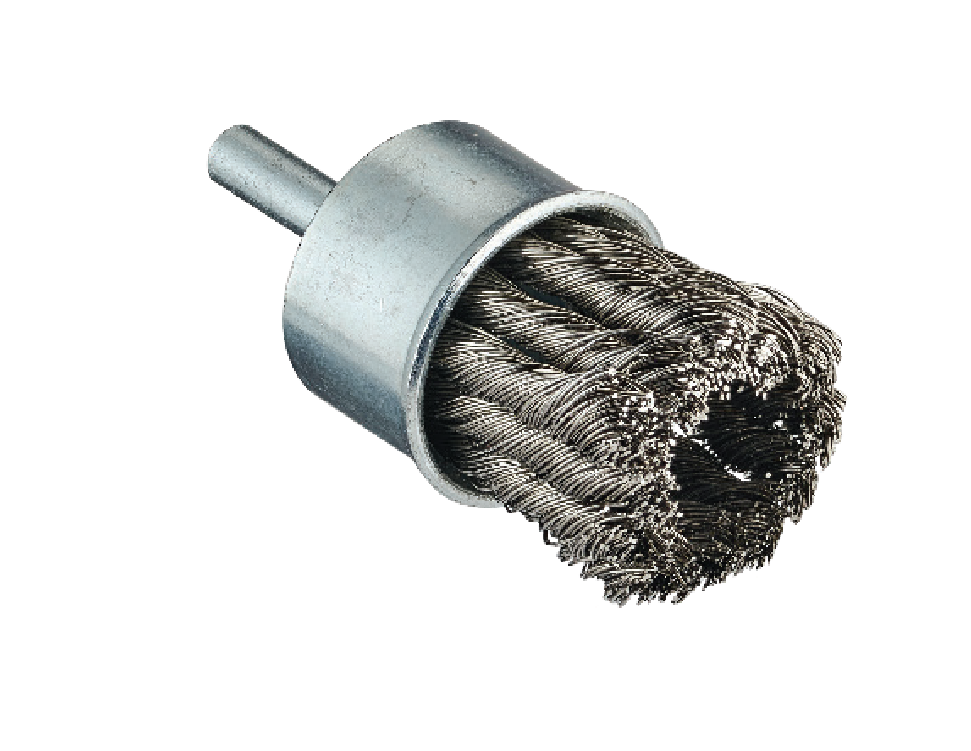

Twisted Knot End Brushes – Stainless Steel

Our twisted knot end brushes deliver more aggressive cleaning and removal of slag, rust, paint and other hard materials and can fit in smaller areas. Choose stainless steel when corrosion resistance is important, or environment is wet. For use on angle grinders.

TANIS PART NO. BRUSH DIAMETER WIRE SIZE TRIM LENGTH SHANK DIAMETER NO. OF KNOTS MAX. RPM
71360 3/4" .014 7/8" 1/4" 8 20,000
71364 1-1/8" .014 7/8" 1/4" 12 20,000
71368 1-1/8" .020 7/8" 1/4" 12 20,000

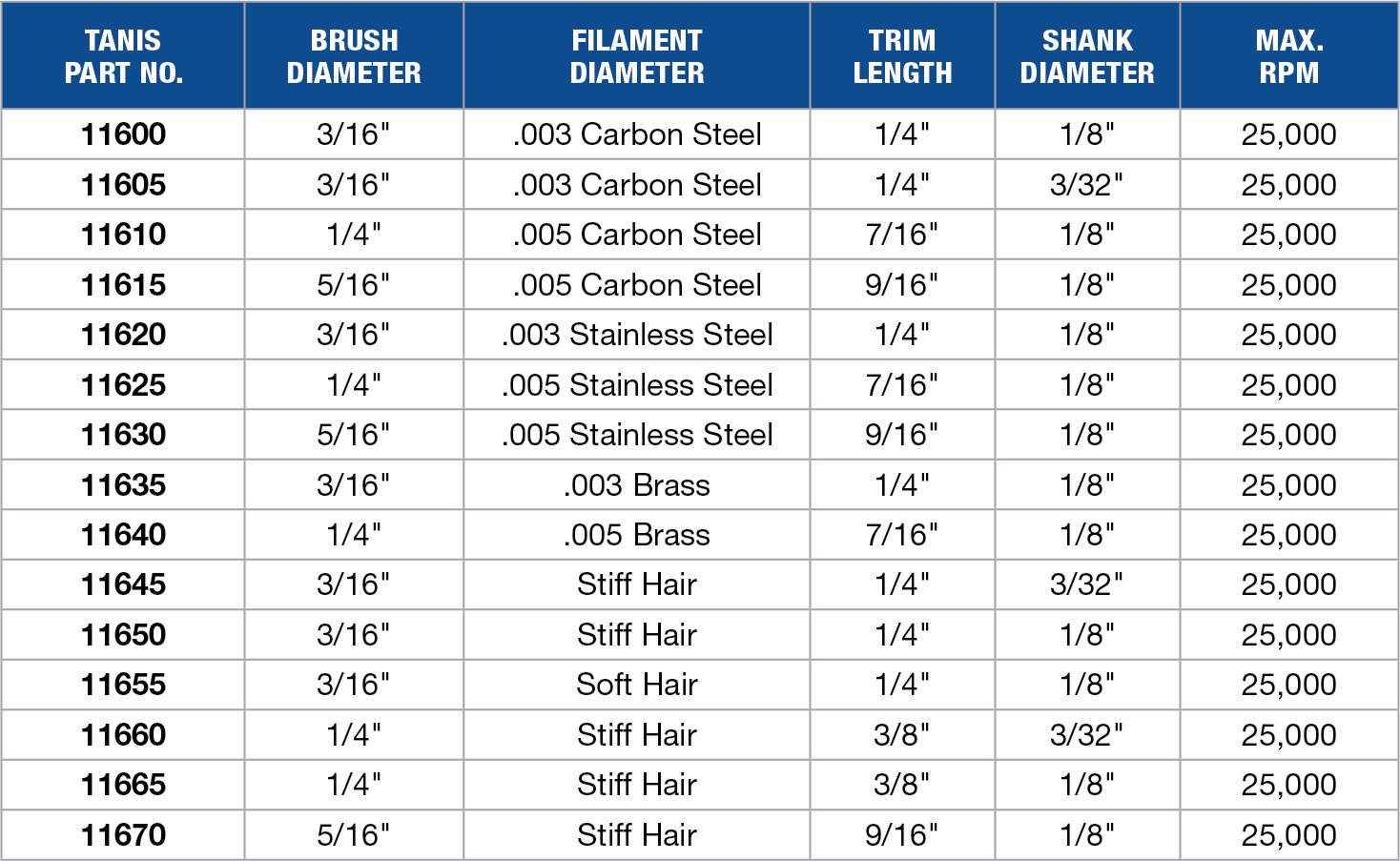

Miniature End Brushes

Mini end brushes are constructed with perfect balance and uniform wear around the brush face. The ferrule and stem are a single piece to ensure no separation during operation. Best uses for mini end brushes are blending small surface areas, light cleaning in electronic instruments and light deburring.

TANIS PART NO. BRUSH DIAMETER FILAMENT DIAMETER TRIM LENGTH SHANK DIAMETER MAX. RPM
11600 3/16" .003 Carbon Steel 1/4" 1/8" 25,000
11605 3/16" .003 Carbon Steel 1/4" 3/32" 25,000
11610 1/4" .005 Carbon Steel 7/16" 1/8" 25,000
11615 5/16" .005 Carbon Steel 9/16" 1/8" 25,000
11620 3/16" .003 Stainless Steel 1/4" 1/8" 25,000
11625 1/4" .005 Stainless Steel 7/16" 1/8" 25,000
11630 5/16" .005 Stainless Steel 9/16" 1/8" 25,000
11635 3/16" .003 Brass 1/4" 1/8" 25,000
11640 1/4" .005 Brass 7/16" 1/8" 25,000
11645 3/16" Stiff Hair 1/4" 3/32" 25,000
11650 3/16" Stiff Hair 1/4" 1/8" 25,000
11655 3/16" Soft Hair 1/4" 1/8" 25,000
11660 1/4" Stiff Hair 3/8" 3/32" 25,000
11665 1/4" Stiff Hair 3/8" 1/8" 25,000
11670 5/16" Stiff Hair 9/16" 1/8" 25,000
