Disc Brush Accessories

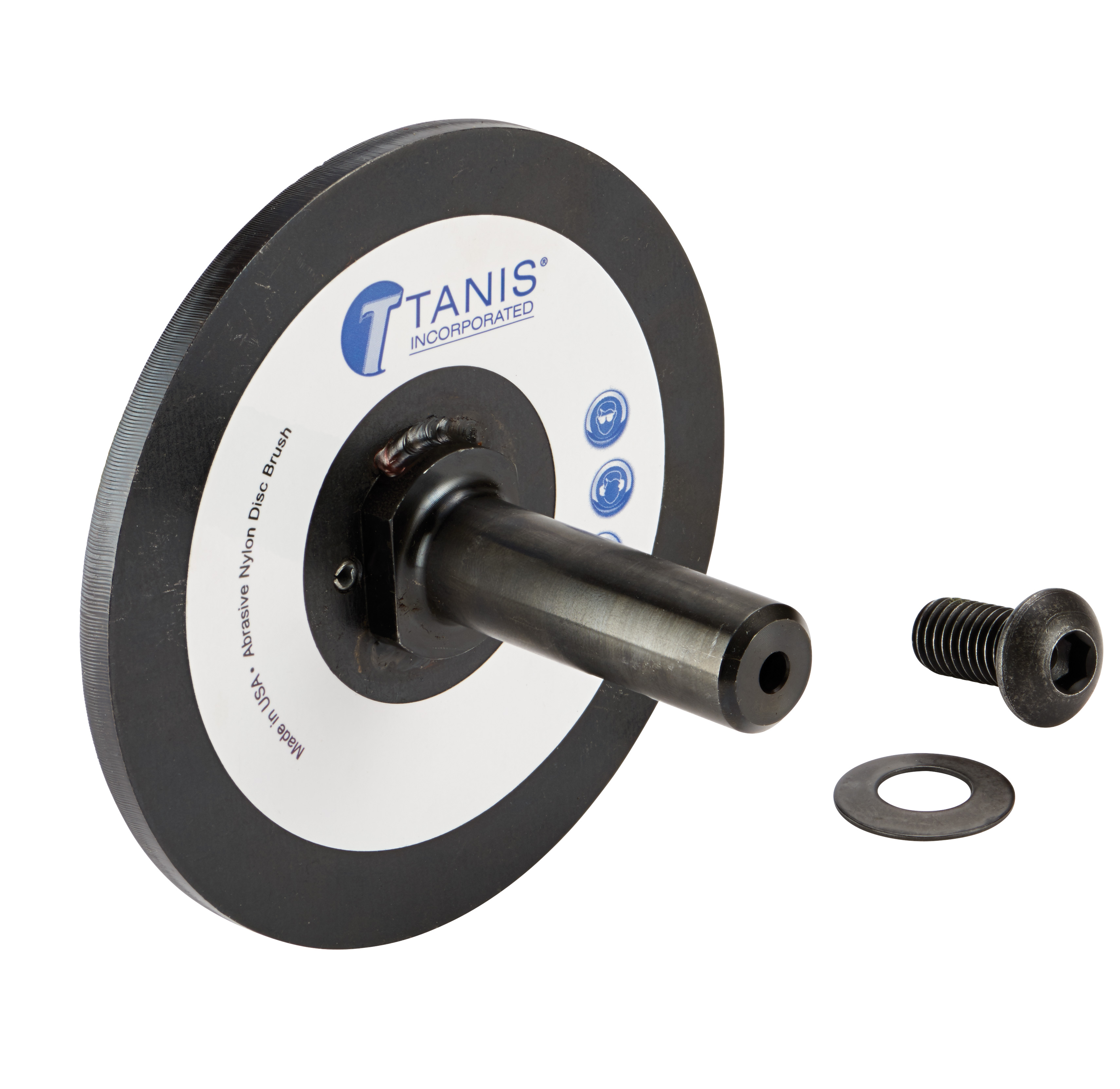

Disc Brush Drive Arbor

The disc brush drive arbor is used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is ¾” diameter for use in any live tool holder. Coolant flow thru shaft and bolt. Drive arbor includes bolt and washer, part no. 35075.

Product Detail

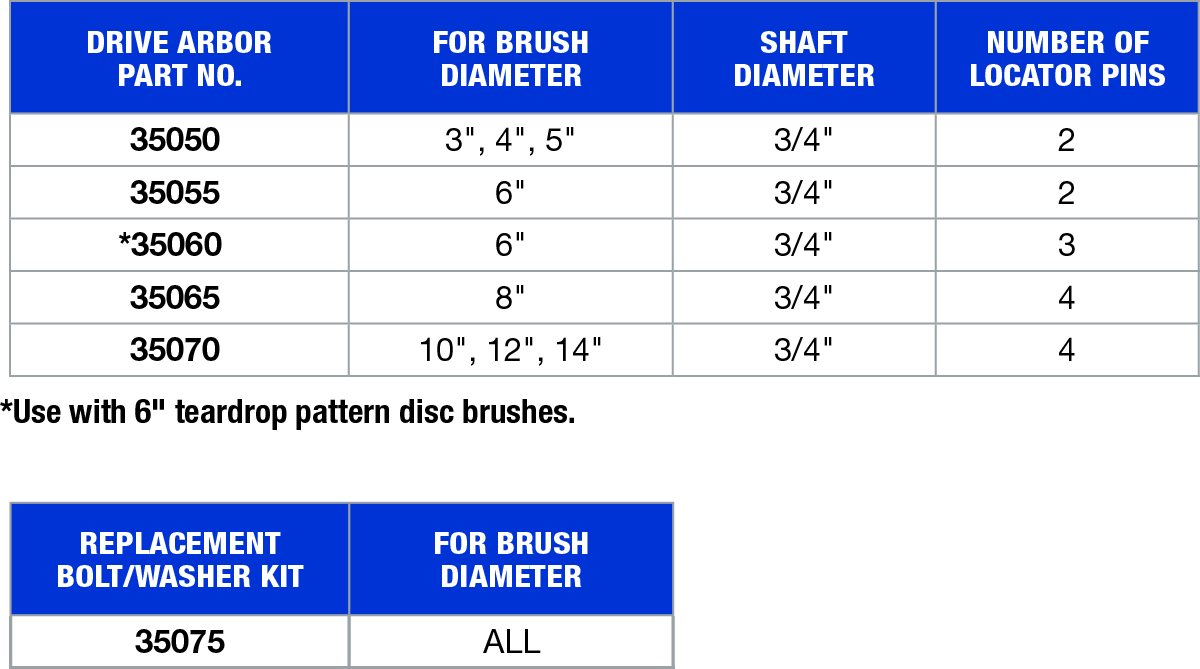

DRIVE ARBOR PART NO. FOR BRUSH DIAMETER SHAFT DIAMETER NUMBER OF LOCATOR PINS
35050 3", 4", 5" 3/4" 2
35055 6" 3/4" 2
*35060 6" 3/4" 3
35065 8" 3/4" 4
35070 10", 12", 14" 3/4" 4

*Use with 6" teardrop pattern disc brushes.

REPLACEMENT BOLT/WASHER KIT FOR BRUSH DIAMETER
35075 ALL

Mini Disc Brush Drive Arbor

The mini disc brush arbor is used to securely mount mini discs for use in any type of milling or CNC machine. Brush is secured to drive arbor with set screws (included). Drive arbor shaft is ½” diameter for use in any live tool holder. Coolant flows thru shaft.

Product Detail

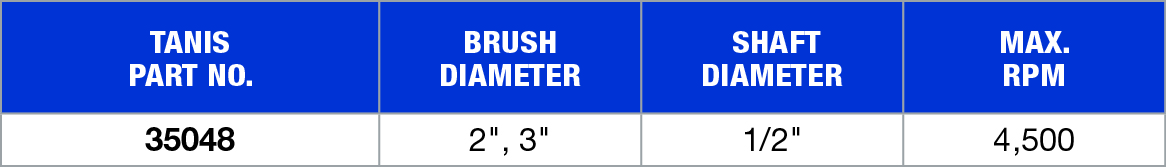

TANIS PART NO. BRUSH DIAMETER SHAFT DIAMETER MAX. RPM
35048 2", 3" 1/2" 4,500

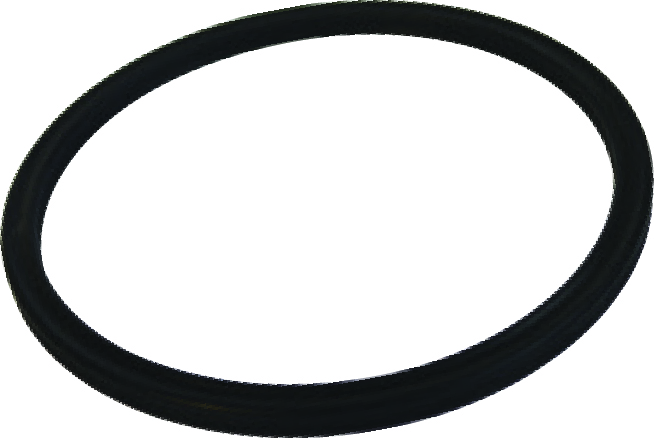

Disc Brush Bands

Disc brush bands can be applied to disc or end brushes to prevent flaring and enhance concentrated brushing action. To use, insert bands on disc or end brush where the filament meets the base.

Product Detail

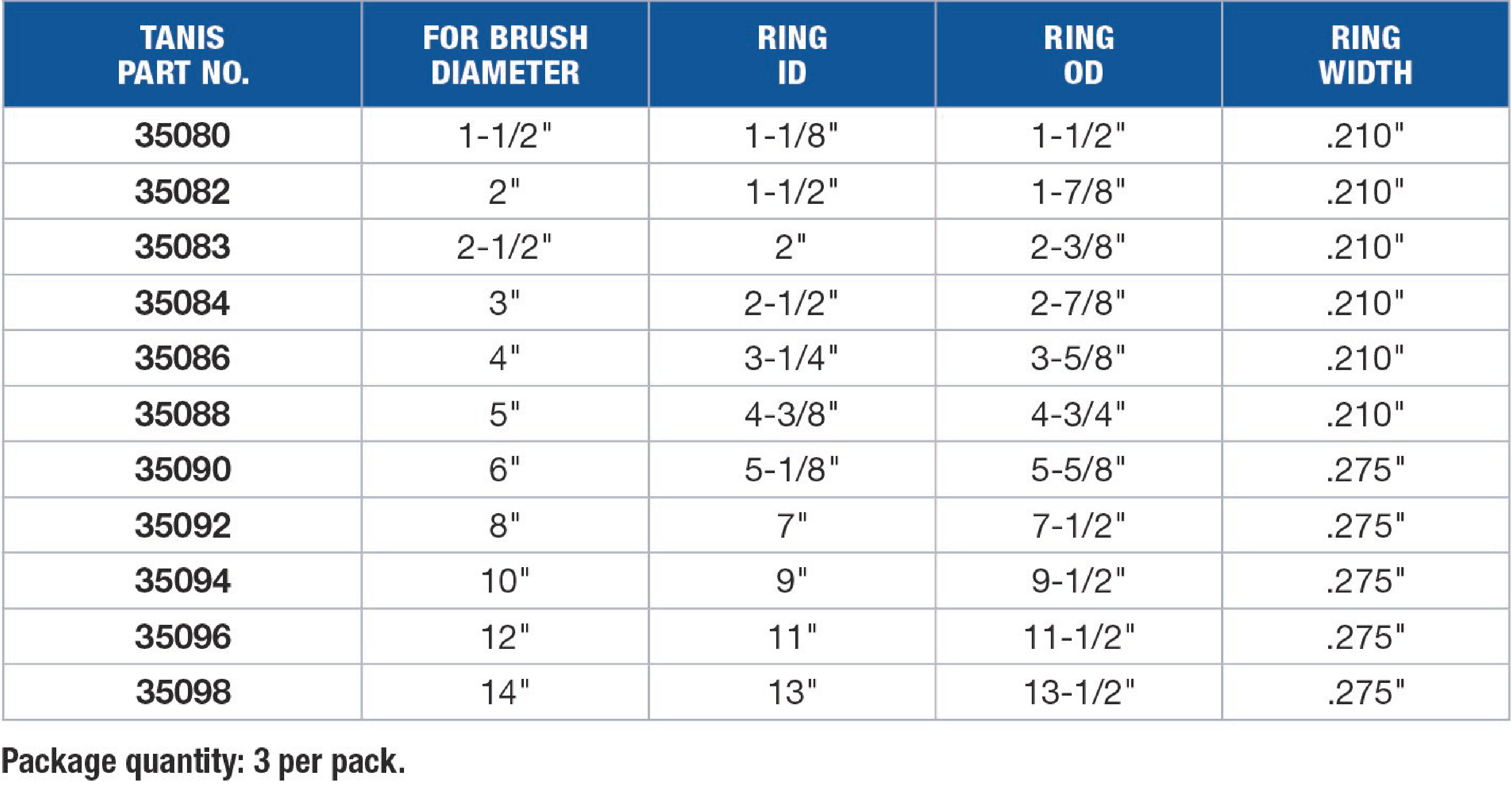

TANIS PART NO. FOR BRUSH DIAMETER RING ID RING OD RING WIDTH
35080 1-1/2" 1-1/8" 1-1/2" .210"
35082 2" 1-1/2" 1-7/8" .210"
35083 2-1/2" 2" 2-3/8" .210"
35084 3" 2-1/2" 2-7/8" .210"
35086 4" 3-1/4" 3-5/8" .210"
35088 5" 4-3/8" 4-3/4" .210"
35090 6" 5-1/8" 5-5/8" .275"
35092 8" 7" 7-1/2" .275"
35094 10" 9" 9-1/2" .275"
35096 12" 11" 11-1/2" .275"
35098 14" 13" 13-1/2" .275"

Package quantity: 3 per pack.
