Micro Tube Brushes

For ultra-fine cross hole deburring, cleaning, blending and polishing of small diameter holes and built with a loop end for hand use or cut end for use in power tools. Available in standard and metric versions.

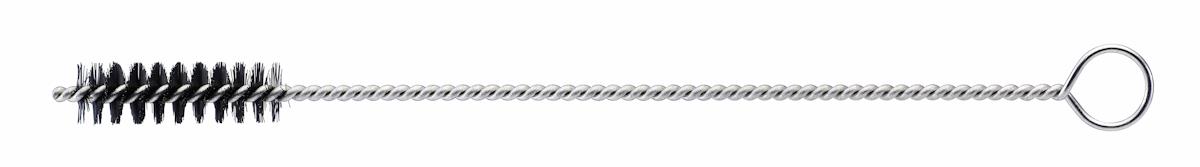

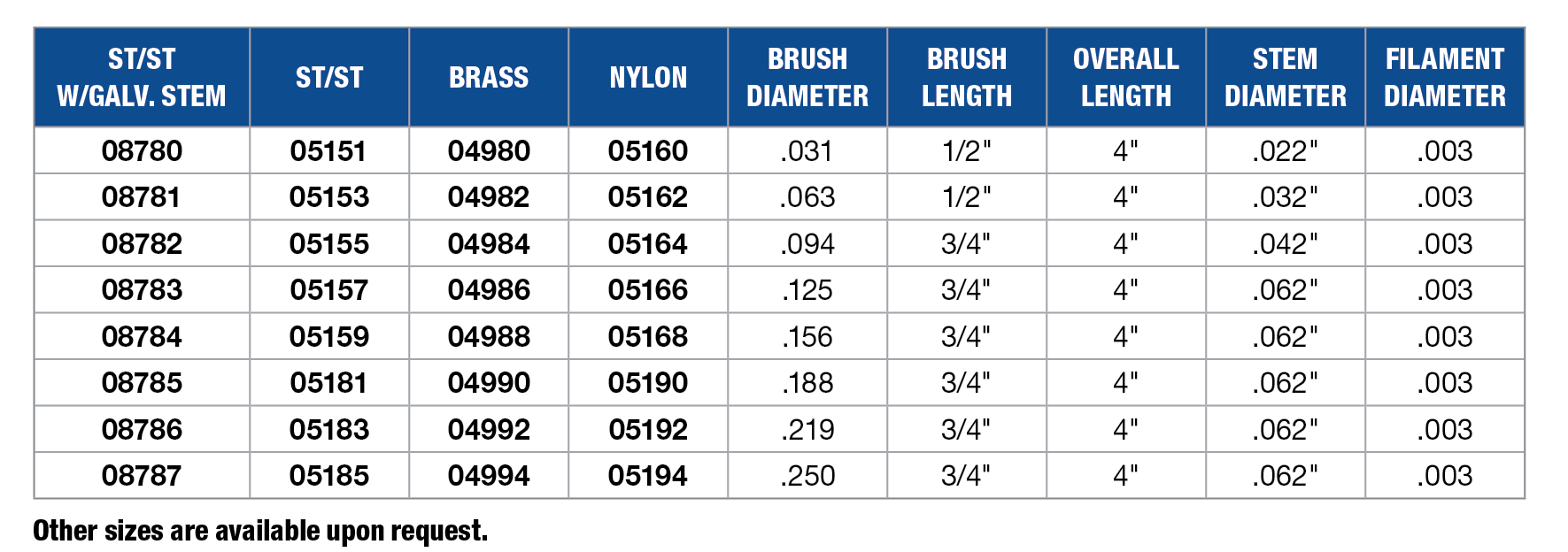

Micro Tube Cleaning Brushes with Loop End

ST/ST W/GALV. STEM ST/ST BRASS NYLON BRUSH DIAMETER BRUSH LENGTH OVERALL LENGTH STEM DIAMETER FILAMENT DIAMETER
08780 05151 04980 05160 .031 1/2" 4" .022" .003
08781 05153 04982 05162 .063 1/2" 4" .032" .003
08782 05155 04984 05164 .094 3/4" 4" .042" .003
08783 05157 04986 05166 .125 3/4" 4" .062" .003
08784 05159 04988 05168 .156 3/4" 4" .062" .003
08785 05181 04990 05190 .188 3/4" 4" .062" .003
08786 05183 04992 05192 .219 3/4" 4" .062" .003
08787 05185 04994 05194 .250 3/4" 4" .062" .003

Other sizes available upon request.

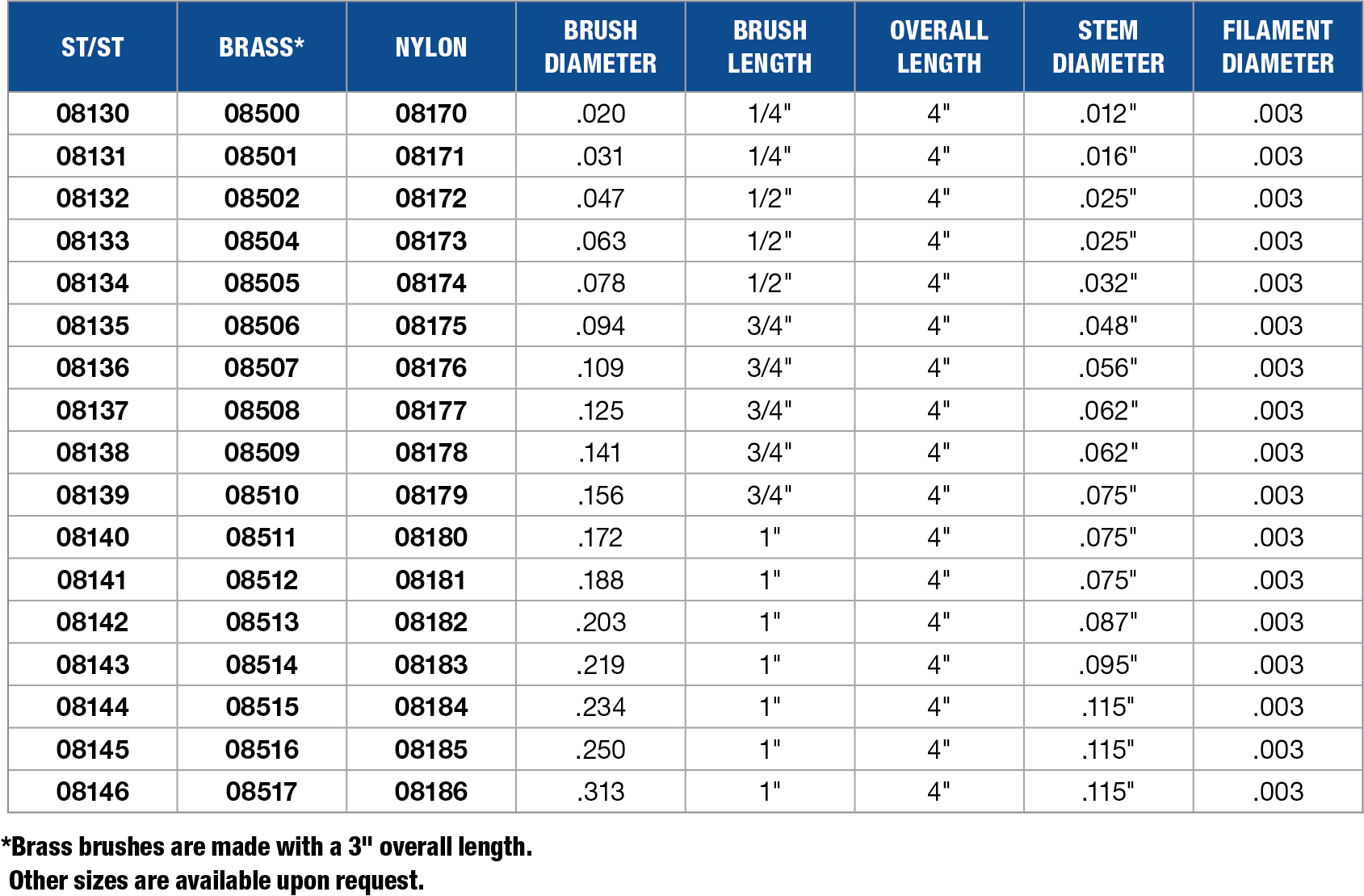

Micro Tube Cleaning Brushes with Cut End

ST/ST BRASS* NYLON BRUSH DIAMETER BRUSH LENGTH OVERALL LENGTH STEM DIAMETER FILAMENT DIAMETER
08130 08500 08170 .020 1/4" 4" .012" .003
08131 08501 08171 .031 1/4" 4" .016" .003
08132 08502 08172 .047 1/2" 4" .025" .003
08133 08504 08173 .063 1/2" 4" .025" .003
08134 08505 08174 .078 1/2" 4" .032" .003
08135 08506 08175 .094 3/4" 4" .048" .003
08136 08507 08176 .109 3/4" 4" .056" .003
08137 08508 08177 .125 3/4" 4" .062" .003
08138 08509 08178 .141 3/4" 4" .062" .003
08139 08510 08179 .156 3/4" 4" .075" .003
08140 08511 08180 .172 1" 4" .075" .003
08141 08512 08181 .188 1" 4" .075" .003
08142 08513 08182 .203 1" 4" .087" .003
08143 08514 08183 .219 1" 4" .095" .003
08144 08515 08184 .234 1" 4" .115" .003
08145 08516 08185 .250 1" 4" .115" .003
08146 08517 08186 .313 1" 4" .115" .003

*Brass brushes are made with a 3" overall length.
Other sizes available upon request.

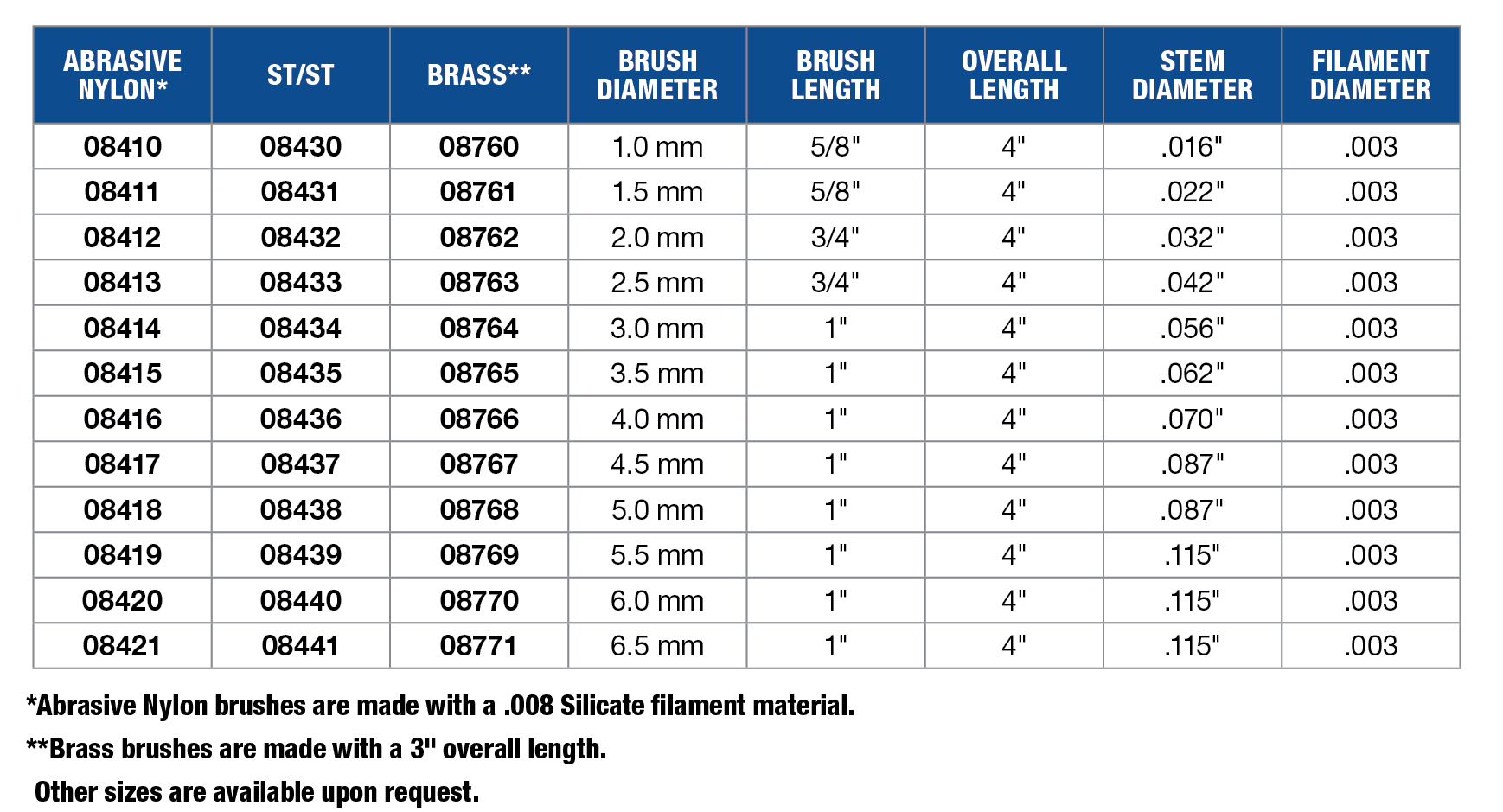

Metric Micro Tube Cleaning Brushes with Cut End

ABRASIVE NYLON* ST/ST BRASS** BRUSH DIAMETER BRUSH LENGTH OVERALL LENGTH STEM DIAMETER FILAMENT DIAMETER
08410 08430 08760 1.0 mm 5/8" 4" .016" .003
08411 08431 08761 1.5 mm 5/8" 4" .022" .003
08412 08432 08762 2.0 mm 3/4" 4" .032" .003
08413 08433 08763 2.5 mm 3/4" 4" .042" .003
08414 08434 08764 3.0 mm 1" 4" .056" .003
08415 08435 08765 3.5 mm 1" 4" .062" .003
08416 08436 08766 4.0 mm 1" 4" .070" .003
08417 08437 08767 4.5 mm 1" 4" .087" .003
08418 08438 08768 5.0 mm 1" 4" .087" .003
08419 08439 08769 5.5 mm 1" 4" .115" .003
08420 08440 08770 6.0 mm 1" 4" .115" .003
08421 08441 08771 6.5 mm 1" 4" .115" .003

*Abrasive Nylon brushes are mode with a .008 Silicate filament material.
**Brass brushes are made with a 3" overall length.
Other sizes are available upon request.
